Hydro steering box for BMW 2500-3.3Li 2500 (1971)

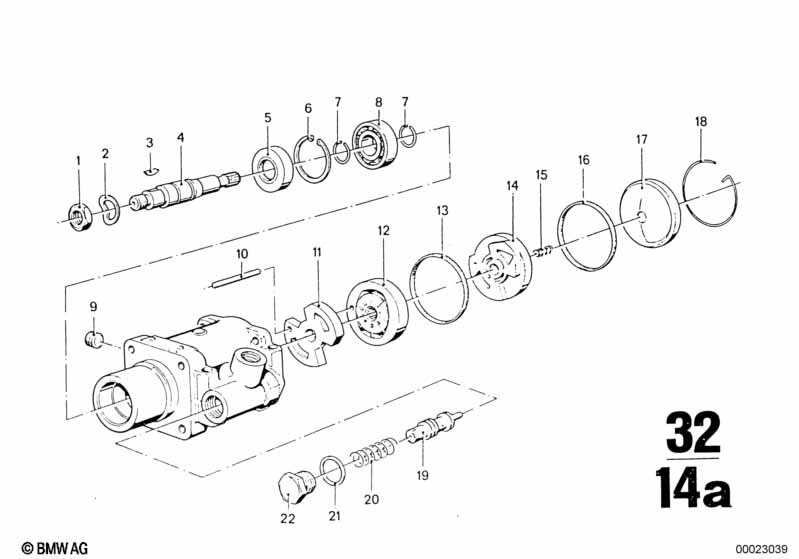

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Set woodruff key 25 | 4X5 | 1 | 07509064297 | ENDED | Shop at ECS Tuning | ||||
| 04 | Drive Shaft | 1 | 32411117619 | $51.89 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shaft seal | 1 | 32411117621 | $7.80 | Shop at ECS Tuning | |||||

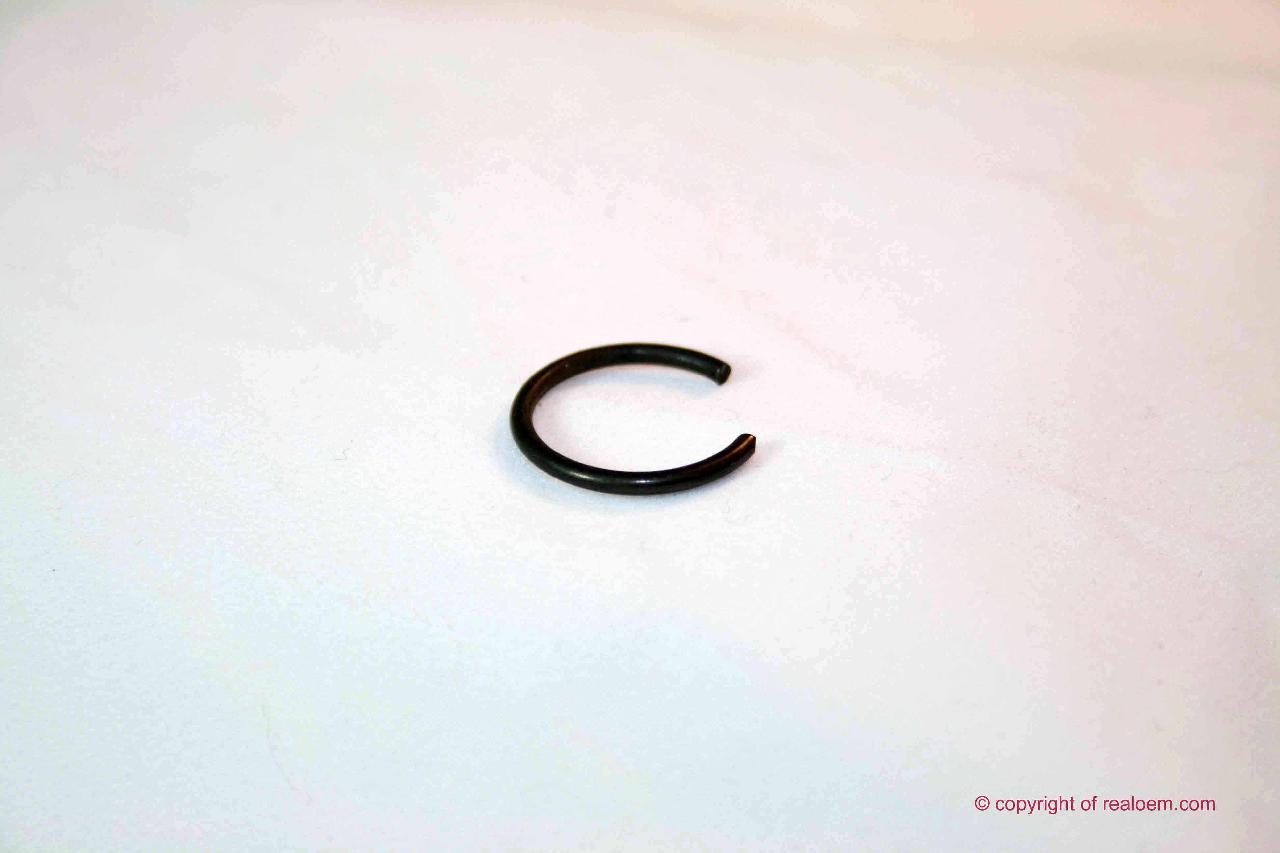

| 07 | Snap ring | 20 | 1 | 07119933441 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 08 | Ball bearing | 20,0X42,0X12,0 | 1 | 32411117620 | $36.95 | ENDED | Shop at ECS Tuning | |||
| 09 | Screw plug | 2 | 32411105148 | ENDED | Shop at ECS Tuning | |||||
| 10 | Pin | 1 | 32411117624 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 11 | Plate,input side | 1 | 32411117626 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rotor set | 1 | 32411117616 | $191.95 | ENDED | Shop at ECS Tuning | ||||
| 13 | O-ring | 1 | 32411105154 | $4.76 | Shop at ECS Tuning | |||||
| 14 | Plate, cover side | 1 | 32411117627 | ENDED | Shop at ECS Tuning | |||||
| 15 | Compression spring | 1 | 32411117629 | $0.86 | ENDED | Shop at ECS Tuning | ||||
| 16 | O-ring | 1 | 32411105157 | $4.76 | ENDED | Shop at ECS Tuning | ||||
| 17 | Cover | 1 | 32411117628 | $18.76 | ENDED | Shop at ECS Tuning | ||||
| 18 | Lock Ring | 1 | 32411105159 | $2.44 | ENDED | Shop at ECS Tuning | ||||
| 19 | Valve piston tolerance size 1 | 1 | 32411117617 | $31.26 | ENDED | Shop at ECS Tuning | ||||
| 19 | Valve piston tolerance size 2 | 1 | 32411117618 | $35.81 | ENDED | Shop at ECS Tuning | ||||
| 20 | Compression spring | 1 | 32411105143 | $7.70 | ENDED | Shop at ECS Tuning | ||||
| 21 | Gasket ring | A22X27-CU | 1 | 07119963354 | $0.36 | Shop at ECS Tuning | ||||
| 22 | Screw plug | 1 | 32411105160 | $3.77 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
