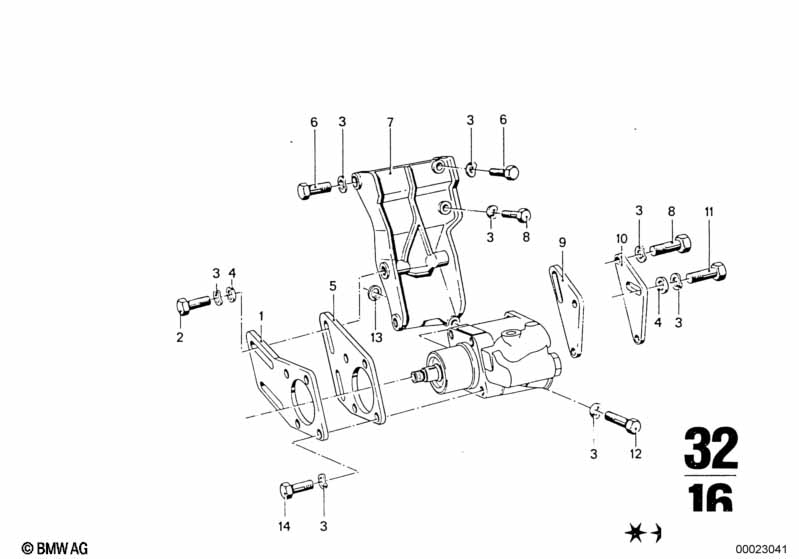

Hydro steering box for BMW 2500-3.3Li 3.3L (1974)
This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Supporting plate | 1 | 09/1973 | 02/1977 | 32411276638 | $43.56 | ENDED | Shop at ECS Tuning | ||

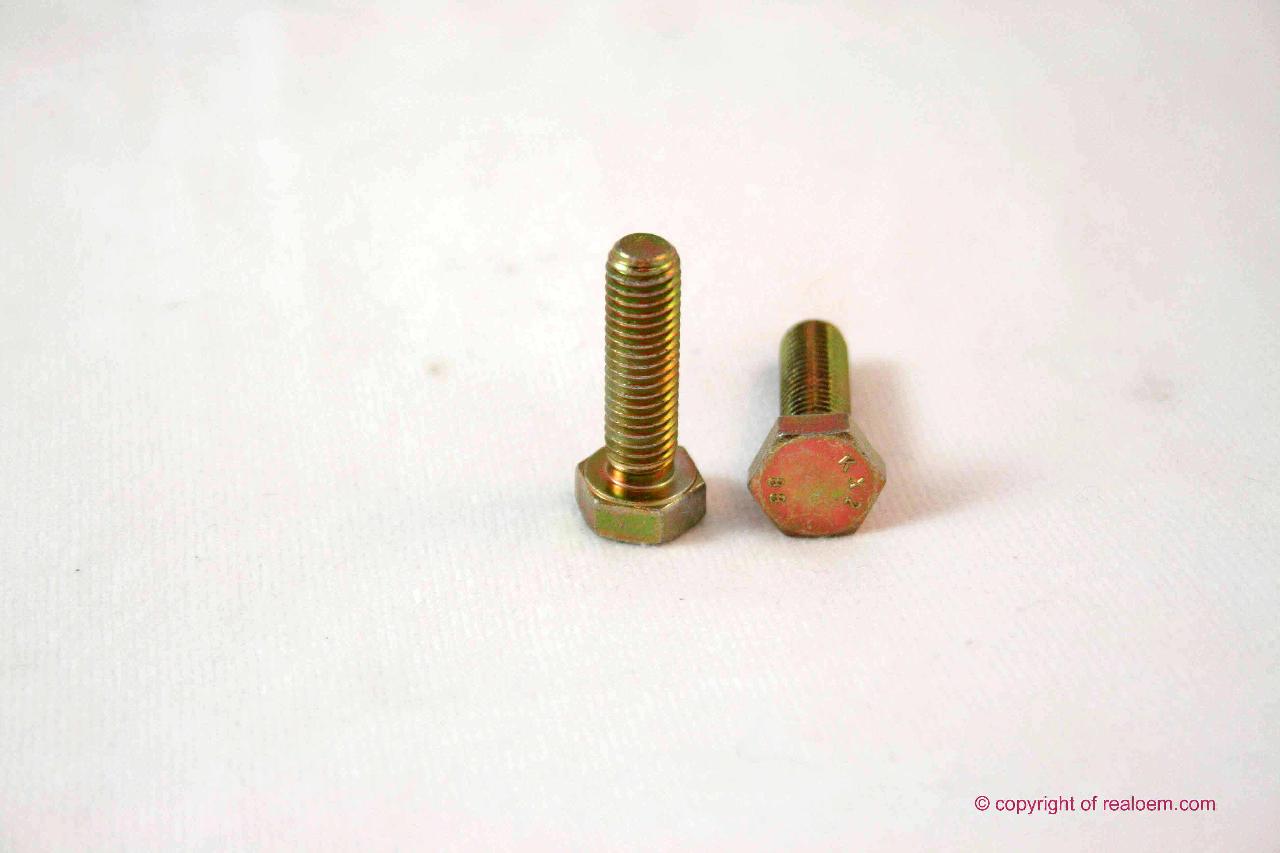

| 02 | Hex bolt | M8X28-ZN | 2 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | 8,4X15-ZNS3 | 14 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Washer | 3 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Supporting bracket | 1 | 32411250620 | $30.33 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 10 | Supporting plate | 1 | 08/1968 | 02/1977 | 32411265846 | $5.07 | Shop at ECS Tuning | |||
| 11 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 09/1973 | 02/1977 | 07119904040 | Shop at ECS Tuning | |||
| 12 | Hex bolt | M8X45 | 1 | 07119913681 | $0.54 | Shop at ECS Tuning | ||||
| 13 | Shim | 0,75MM | X | 32411251264 | ENDED | Shop at ECS Tuning | ||||
| 13 | Shim | 1,0MM | X | 32411251265 | $0.59 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex bolt | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
