Hydro steering box for BMW 2500-3.3Li 3.0Si (1971)

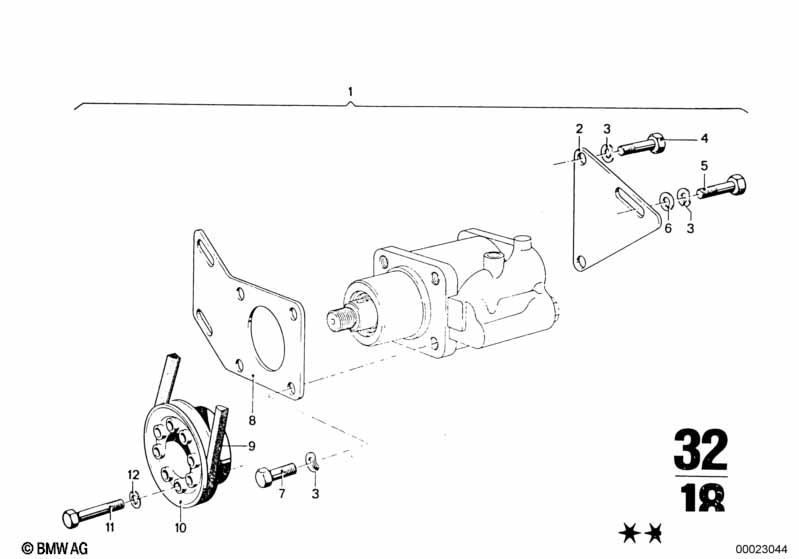

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=No |
|||||||||
| 01 | Retrofit kit, vane pump drive | 1 | 32411259391 | ENDED | Shop at ECS Tuning | |||||
| 02 | Supporting plate | 1 | 32411265846 | $5.07 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Washer | 1 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Supporting plate | 1 | 32411276638 | $43.56 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fan belt | 9,5X888 | 1 | 32421718953 | Shop at ECS Tuning | |||||
| 10 | Pulley | 1 | 32411259343 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X45-8.8-ZNS3 | 8 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Hydro steering box?
- This technical diagram illustrates the Hydro steering box within the Steering group for the 2500-3.3Li 3.0Si produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, vane pump drive (Part #32411259391).
- Which models use the hardware listed in this Hydro steering box?
- The hardware and components featured in the Hydro steering box are specific to the 2500-3.3Li 3.0Si produced during 1971. These technical specifications ensure that parts like the Retrofit kit, vane pump drive (32411259391) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering box assembly?
- Each item in the Hydro steering box corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Retrofit kit, vane pump drive by locating its position on the schematic, which then links to the official BMW part number 32411259391 for the Steering section.
