Steering linkage/tie rods for BMW 2500-3.3Li 2500 (1971)

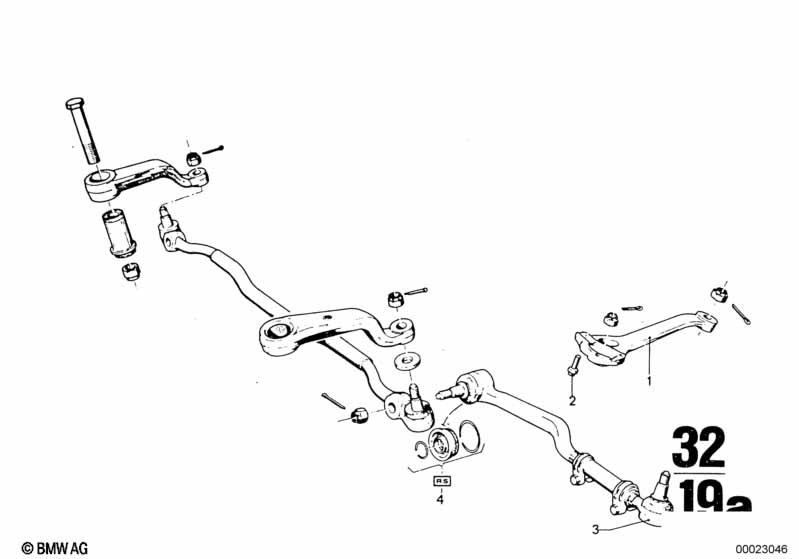

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left tie rod lever | M 10 L=250,5 MM | 1 | 05/1971 | 09/1973 | 32211108352 | ENDED | Shop at ECS Tuning | ||
| 01 | Right tie rod arm | M 10 L=250,5 MM | 1 | 05/1971 | 09/1973 | 32211108353 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M 10 | 6 | 32211113179 | $5.12 | ENDED | Shop at ECS Tuning | |||
| 03 | Ball joint | 2 | 32211114843 | $41.23 | Shop at ECS Tuning | |||||
| 04 | Gasket set ball joint | 4 | 32211112322 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
