Steering column for BMW 2500-3.3Li 3.3Li (1975)

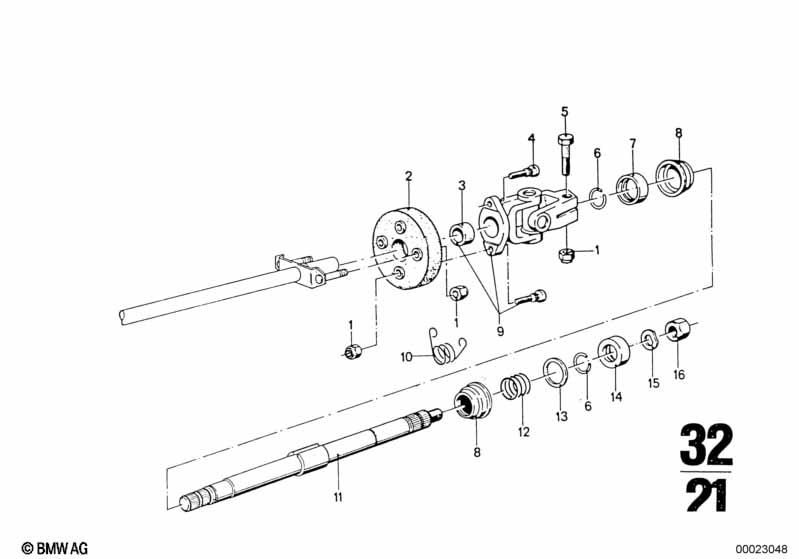

This Steering column technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Hex bolt | M8X40-ZNNIV SI | 3 | 08/1968 | 02/1977 | 07119905549 | $1.05 | Shop at ECS Tuning | ||
| 07 | Ring | 1 | 09/1973 | 02/1977 | 32311112959 | $3.83 | Shop at ECS Tuning | |||
| 08 | Steering spindle bearing | 35,10X18,10 | 2 | 32311150601 | $8.49 | Shop at ECS Tuning | ||||
| 11 | Steering spindle upper | 1 | 09/1973 | 02/1977 | 32311111729 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 12 | Compression spring | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 13 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 14 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 15 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Steering column?
- This technical diagram illustrates the Steering column within the Steering group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119905549).
- Which models use the hardware listed in this Steering column?
- The hardware and components featured in the Steering column are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Hex bolt (07119905549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column assembly?
- Each item in the Steering column corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119905549 for the Steering section.
