Steering column for BMW 2500-3.3Li 2500 (1971)
This Steering column technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Self-locking hex nut | M8-8-ZNNI SI | 5 | 08/1968 | 02/1977 | 07129906196 | $1.60 | Shop at ECS Tuning | ||
| 01 | Self-locking hex nut | M8 | 5 | 08/1968 | 02/1977 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | |
| 02 | Universal joint | 1 | 08/1968 | 02/1977 | 32311112358 | Shop at ECS Tuning | ||||
| 03 | Bush | 1 | 08/1968 | 02/1977 | 32311102690 | ENDED | Shop at ECS Tuning | |||
| 04 | Pin | 2 | 08/1968 | 02/1977 | 32311117373 | $1.82 | ENDED | Shop at ECS Tuning | ||
| 05 | Hex bolt | M8X40-ZNNIV SI | 3 | 08/1968 | 02/1977 | 07119905549 | $1.05 | Shop at ECS Tuning | ||
| 08 | Steering spindle bearing | 35,10X18,10 | 2 | 32311150601 | $8.49 | Shop at ECS Tuning | ||||

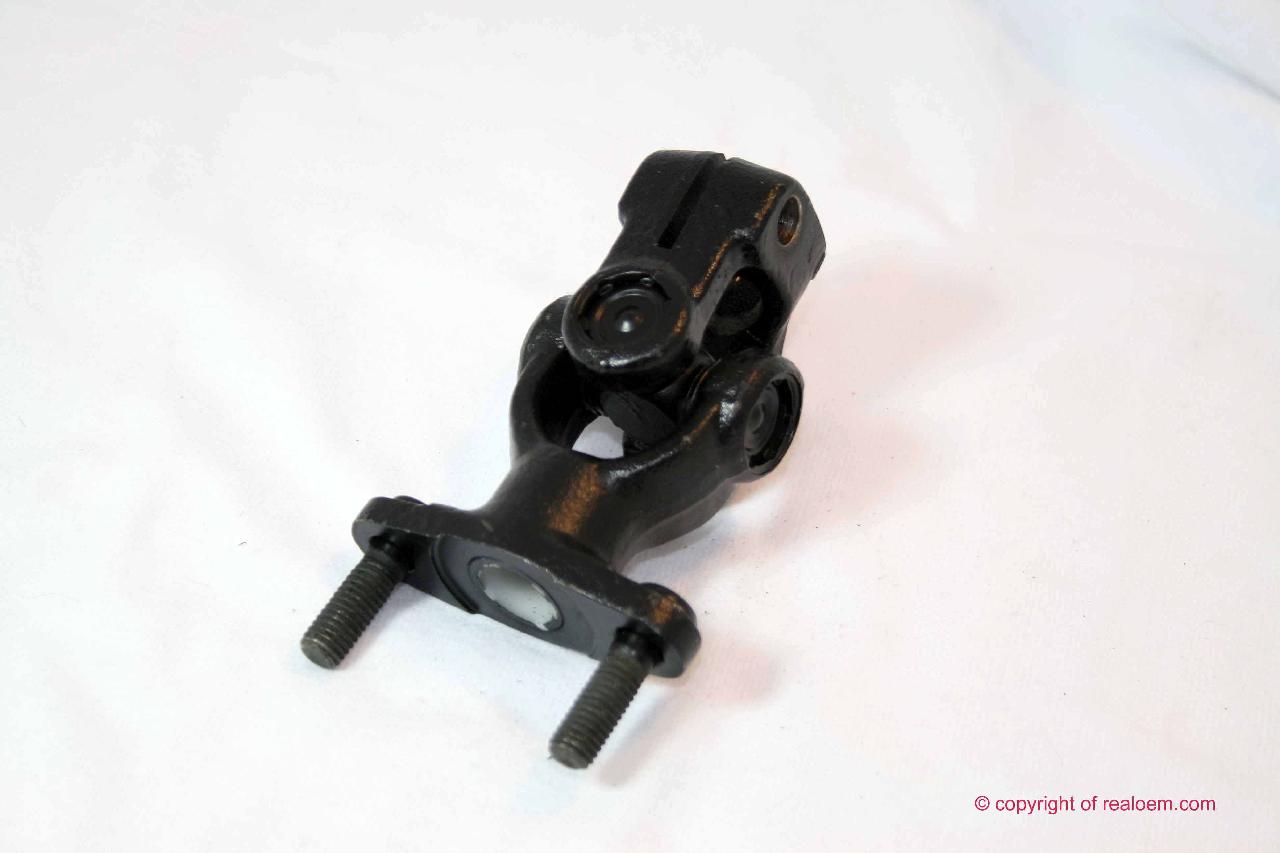

| 09 | Swivel joint | 1 | 08/1968 | 02/1977 | 32311111706 | $178.29 | ENDED | Shop at ECS Tuning | ||
| 10 | Spring | 1 | 08/1968 | 02/1977 | 32311110814 | $34.35 | ENDED | Shop at ECS Tuning | ||
| 11 | Steering spindle upper | 1 | 08/1968 | 02/1977 | 32311103629 | ENDED | Shop at ECS Tuning | |||
| 12 | Compression spring | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 13 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 14 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 15 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 15 | Wave washer | B12-ZN | 1 | 08/1968 | 02/1977 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |
| 16 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M12X1,5 | 1 | 08/1968 | 02/1977 | 07119921627 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
