Steering column for BMW 2500-3.3Li 2500 (1971)

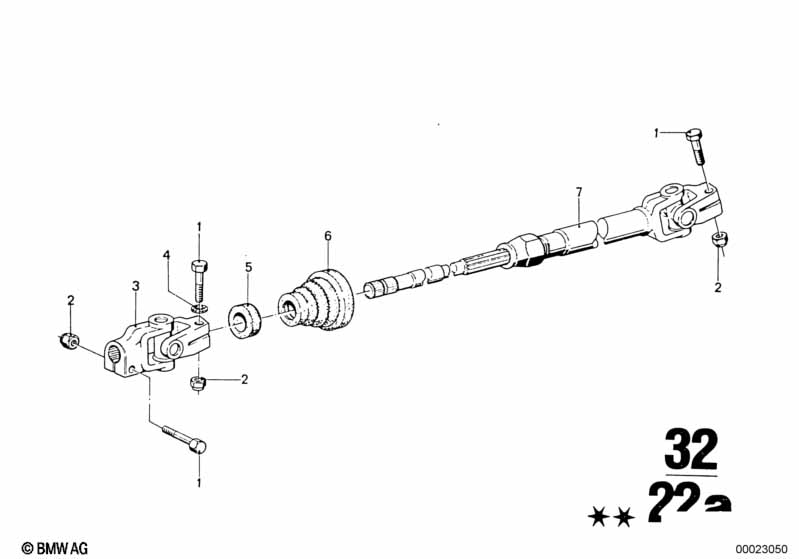

This Steering column technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Self-locking hex nut | M8 | 3 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X30-8.8-ZNS | X | 03/1987 | 07119901025 | $0.47 | Shop at ECS Tuning | |||
| -- | Tooth washer | J8,2 | X | 03/1987 | 07119936207 | $0.07 | Shop at ECS Tuning | |||
| 02 | Self-locking hex nut | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X30-8.8-ZNS | X | 07119901025 | $0.47 | Shop at ECS Tuning | ||||
| -- | Tooth washer | J8,2 | X | 07119936207 | $0.07 | Shop at ECS Tuning | ||||
| 03 | Swivel joint | 1 | 32311150761 | $93.52 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X30-8.8-ZNS | X | 07119901025 | $0.47 | Shop at ECS Tuning | ||||
| -- | Tooth washer | J8,2 | X | 07119936207 | $0.07 | Shop at ECS Tuning | ||||
| 07 | Lower joint assy | 1 | 32311111965 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
