Steering column for BMW 2500-3.3Li 2500 (1971)

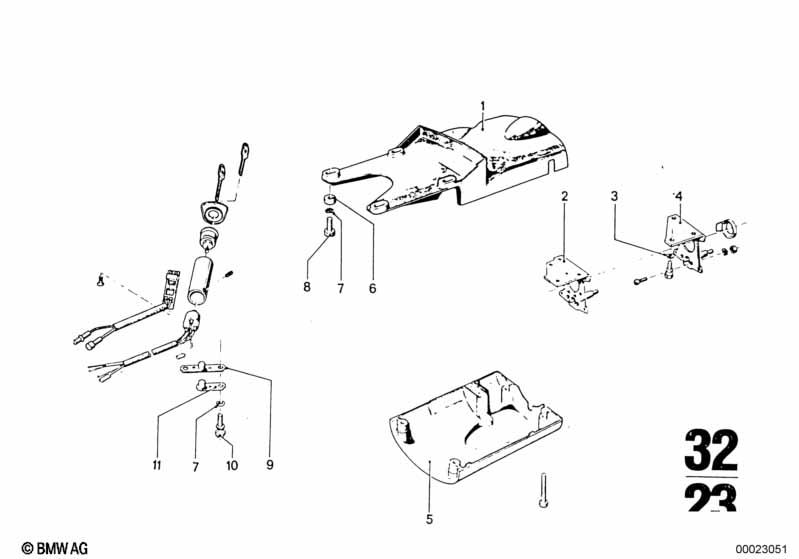

This Steering column technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel upper part | 1 | 08/1968 | 02/1977 | 32311103859 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Plate | X | 08/1968 | 02/1977 | 32321103804 | ENDED | Shop at ECS Tuning | |||
| -- | Plate | X | 08/1968 | 02/1977 | 32311106013 | ENDED | Shop at ECS Tuning | |||
| 02 | Plate | 1 | 08/1968 | 02/1977 | 32311106013 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | B6 | 4 | 08/1968 | 02/1977 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |
| 05 | Lower trim panel | 1 | 08/1968 | 02/1977 | 32311101111 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | A8,4 | 4 | 08/1968 | 02/1977 | 24111690120 | $0.42 | Shop at ECS Tuning | ||
| 07 | Wave washer | 8,4X15-ZNS3 | 10 | 08/1968 | 02/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 08 | Hex bolt | M8X22-8.8-ZNS3 | 4 | 08/1968 | 02/1977 | 07119904040 | Shop at ECS Tuning | |||

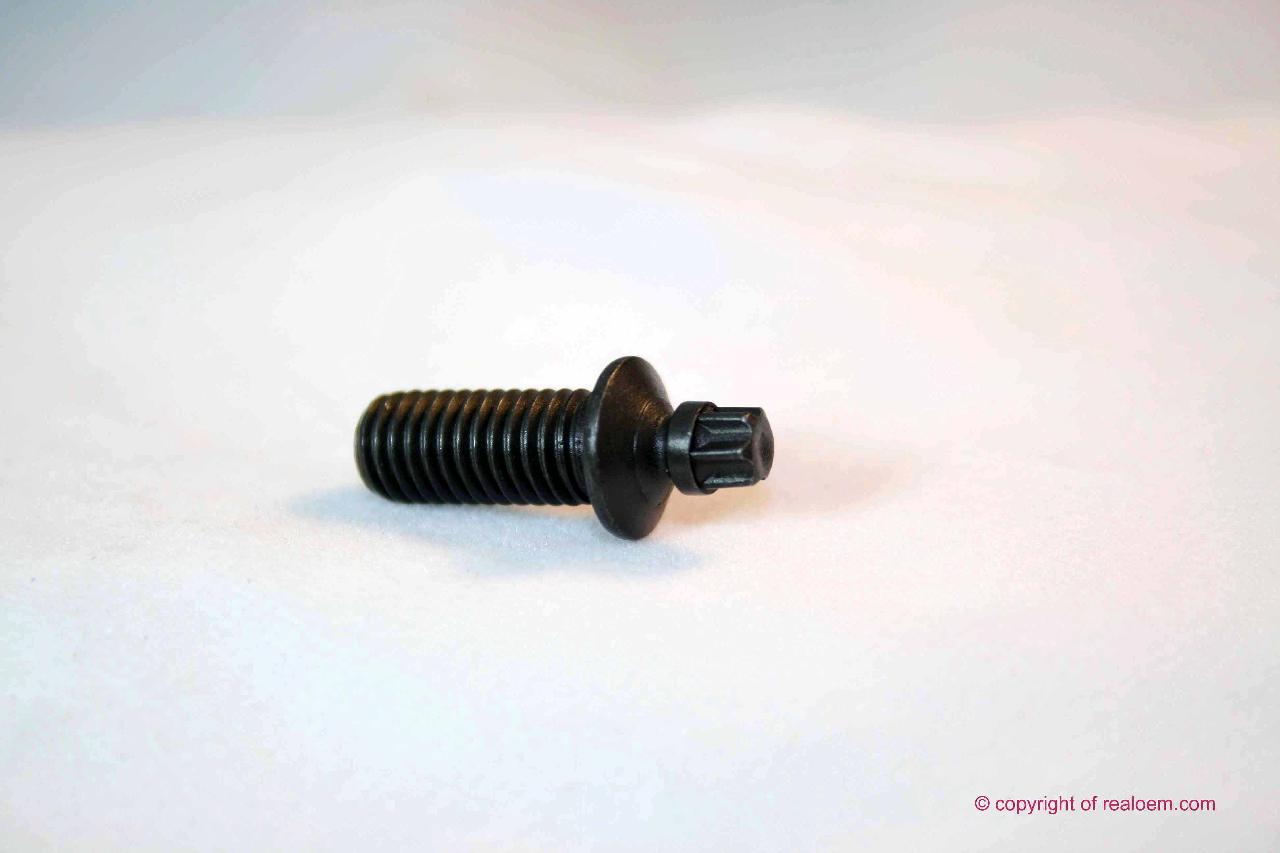

| 10 | Fracture bolt | 1 | 32311157967 | $1.64 | Shop at ECS Tuning | |||||
| Late version | ||||||||||
| 11 | Plate | 1 | 05/1971 | 02/1977 | 32321113713 | $48.76 | Shop at ECS Tuning | |||
| Early version | ||||||||||
| 11 | Plate | 1 | 08/1968 | 09/1973 | 32321103804 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Steering column?
- This technical diagram illustrates the Steering column within the Steering group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Trim panel upper part (Part #32311103859).
- Which models use the hardware listed in this Steering column?
- The hardware and components featured in the Steering column are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Trim panel upper part (32311103859) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column assembly?
- Each item in the Steering column corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Trim panel upper part by locating its position on the schematic, which then links to the official BMW part number 32311103859 for the Steering section.
