Steering lock/ignition switch for BMW 2500-3.3Li 3.3L (1974)

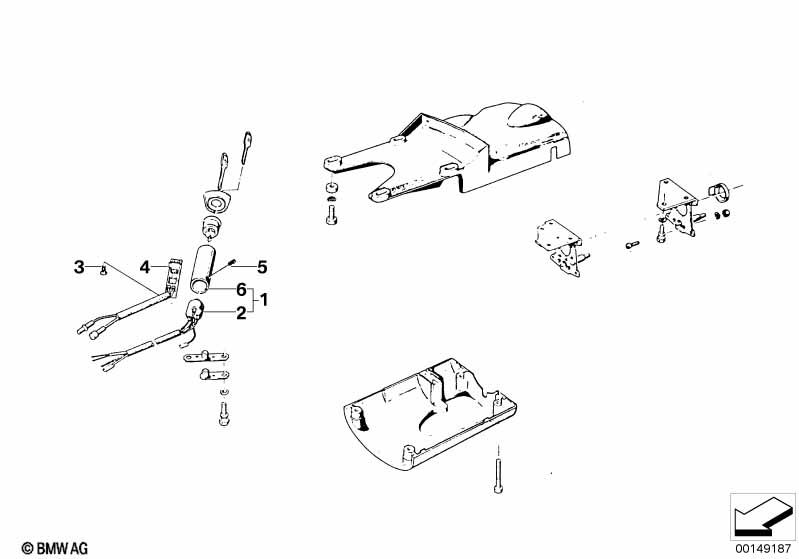

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering lock | KABEL CA 600 MM | 1 | 09/1973 | 02/1977 | 32321112863 | $173.56 | ENDED | Shop at ECS Tuning | |
| 02 | Ignition switch | 1 | 09/1973 | 02/1977 | 61321357380 | $200.35 | ENDED | Shop at ECS Tuning | ||

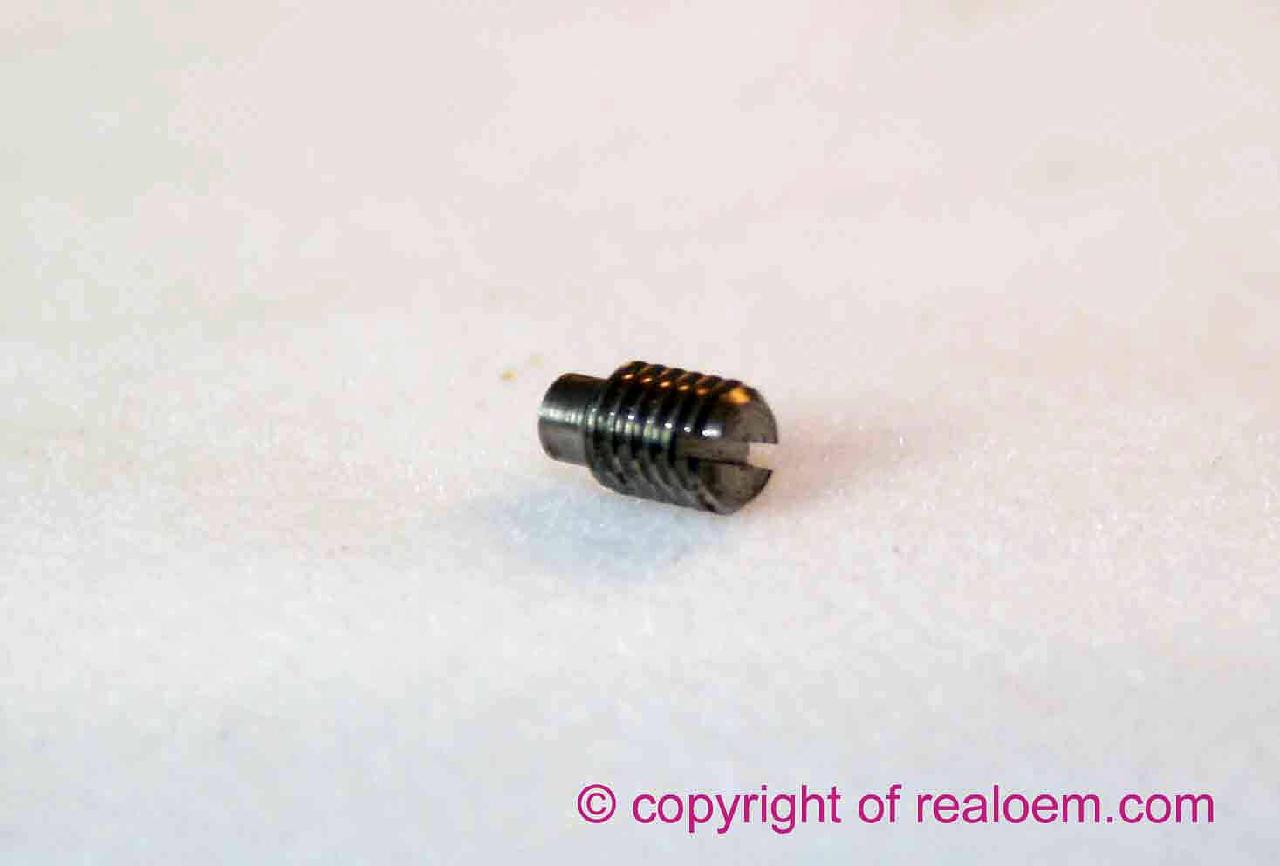

| 05 | Grub screw | M3X5 | 1 | 07119904210 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Housing for steering wheel lock | 1 | 09/1973 | 02/1977 | 32321120577 | $81.39 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
