Steering column for BMW 2500-3.3Li 2500 (1971)

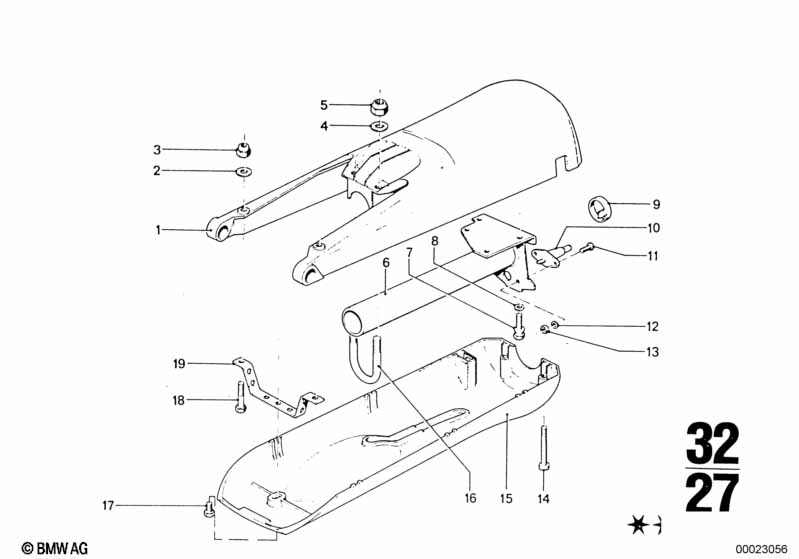

This Steering column technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel upper part | 1 | 32311117300 | $65.45 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M6-10 ZN | 2 | 02/1977 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 03 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8 | 2 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Steering column tube | 1 | 32311111726 | ENDED | Shop at ECS Tuning | |||||
| 07 | Fracture bolt | M6X14 | 4 | 32321109641 | $1.39 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Retainer | 1 | 32321118825 | $15.17 | ENDED | Shop at ECS Tuning | ||||
| 10 | Carbon pin | 1 | 32331350750 | $7.64 | ENDED | Shop at ECS Tuning | ||||

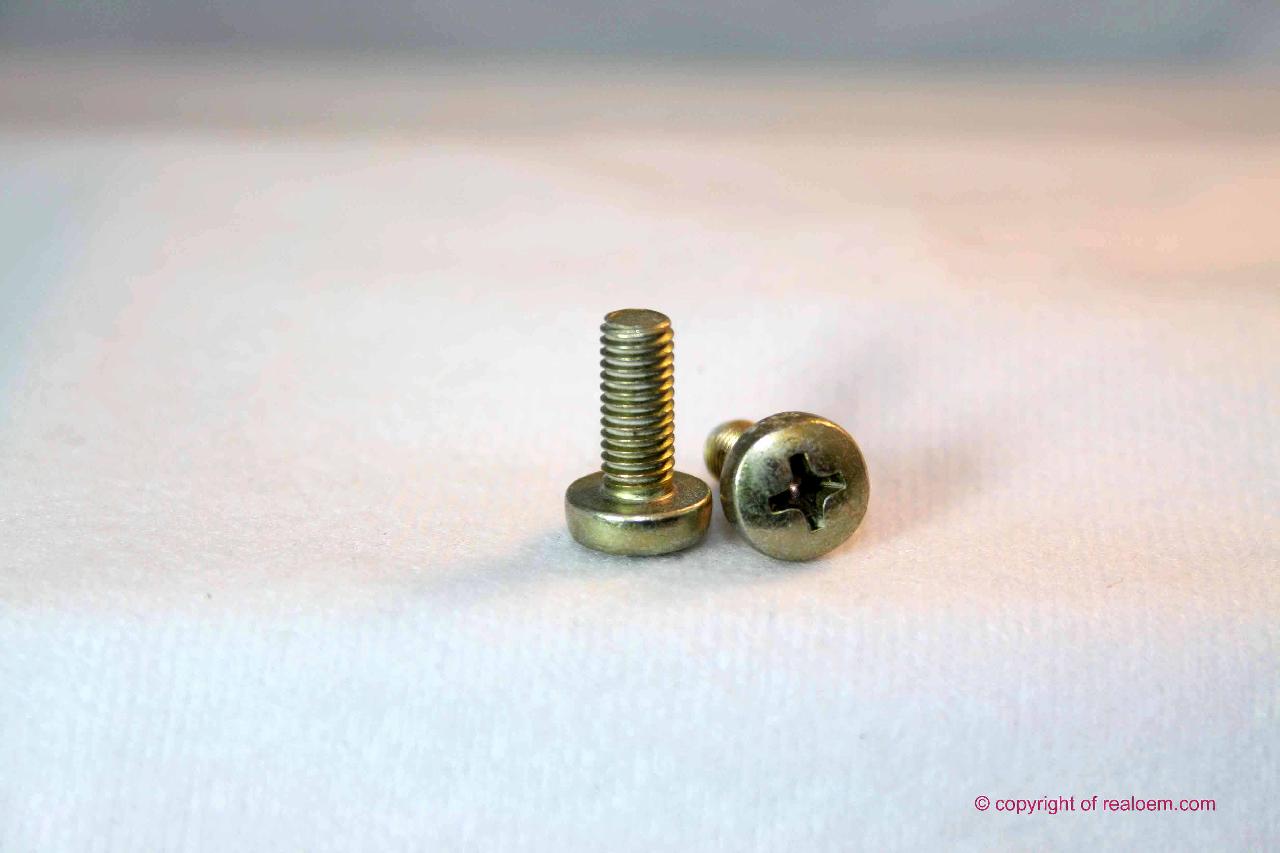

| 11 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | M6X55 | 2 | 07119906437 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 15 | Lower trim panel | 1 | 32311152991 | $25.83 | ENDED | Shop at ECS Tuning | ||||
| 16 | Bow | 1 | 32311111789 | $8.59 | ENDED | Shop at ECS Tuning | ||||
| 17 | Set fillister head screw 10 | M6X8 | 1 | 07509064349 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X45 8.8 ZNS3 | 2 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 19 | Holder | 1 | 32311112909 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
