Steering wheel for BMW 2500-3.3Li 2500 (1971)

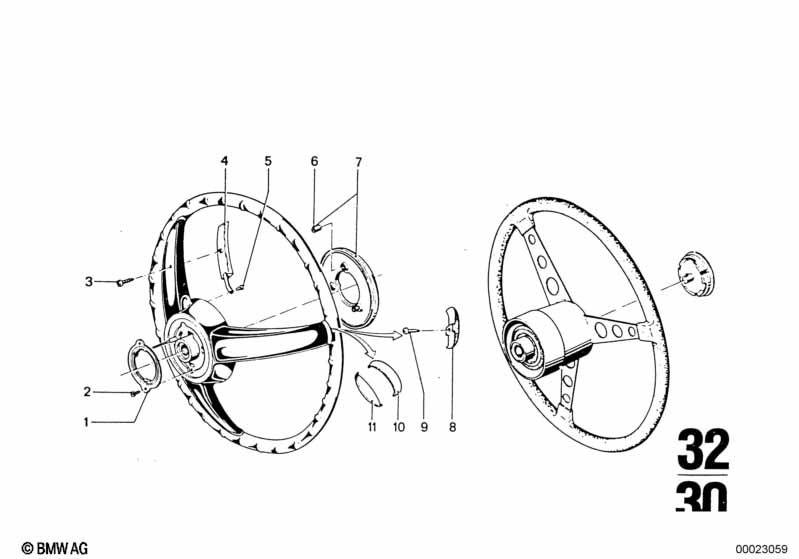

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Slip ring | 1 | 32331350303 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fillister-head screw | AM3,5X8 | 2 | 07119919353 | ENDED | Shop at ECS Tuning | ||||
| 03 | Recessed oval head sheet-metal screw | ST3,5X9,5 | 3 | 07119902524 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Horn pad | 3 | 32331351152 | ENDED | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | AM3,5X8 | 3 | 07119919353 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | AM4X6 | 3 | 07119919363 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cap | 1 | 08/1968 | 02/1977 | 32331107683 | $21.32 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version france and National version sweden |
L813A=Yes =Yes |
|||||||||
| 07 | Cap | 1 | 08/1968 | 02/1977 | 32331109124 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | 3 | 08/1968 | 02/1977 | 32331108886 | ENDED | Shop at ECS Tuning | |||
| 09 | Set recess.oval head sheet-metal screw20 | ST2,9X9,5 | 3 | 08/1968 | 02/1977 | 07509064405 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
