Steering wheel for BMW 2500-3.3Li 2500 (1971)

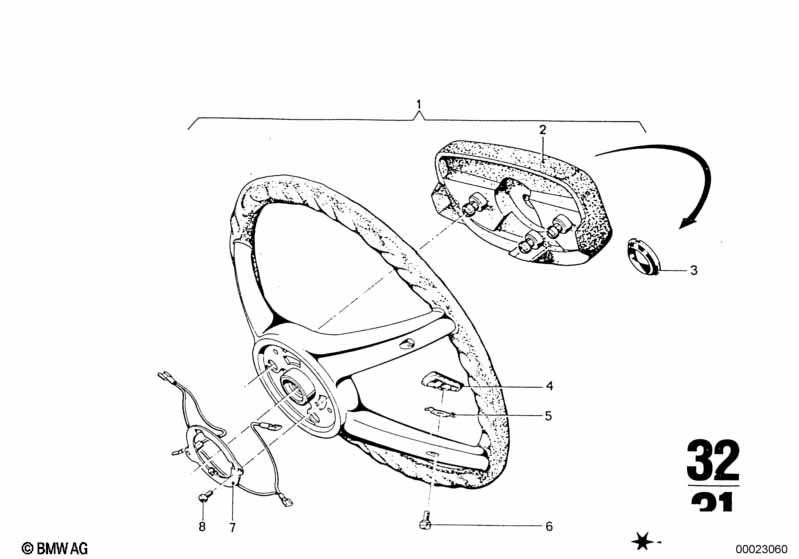

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cap | 1 | 32331116501 | $108.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Badge | 1 | 32331110960 | $9.71 | Shop at ECS Tuning | |||||

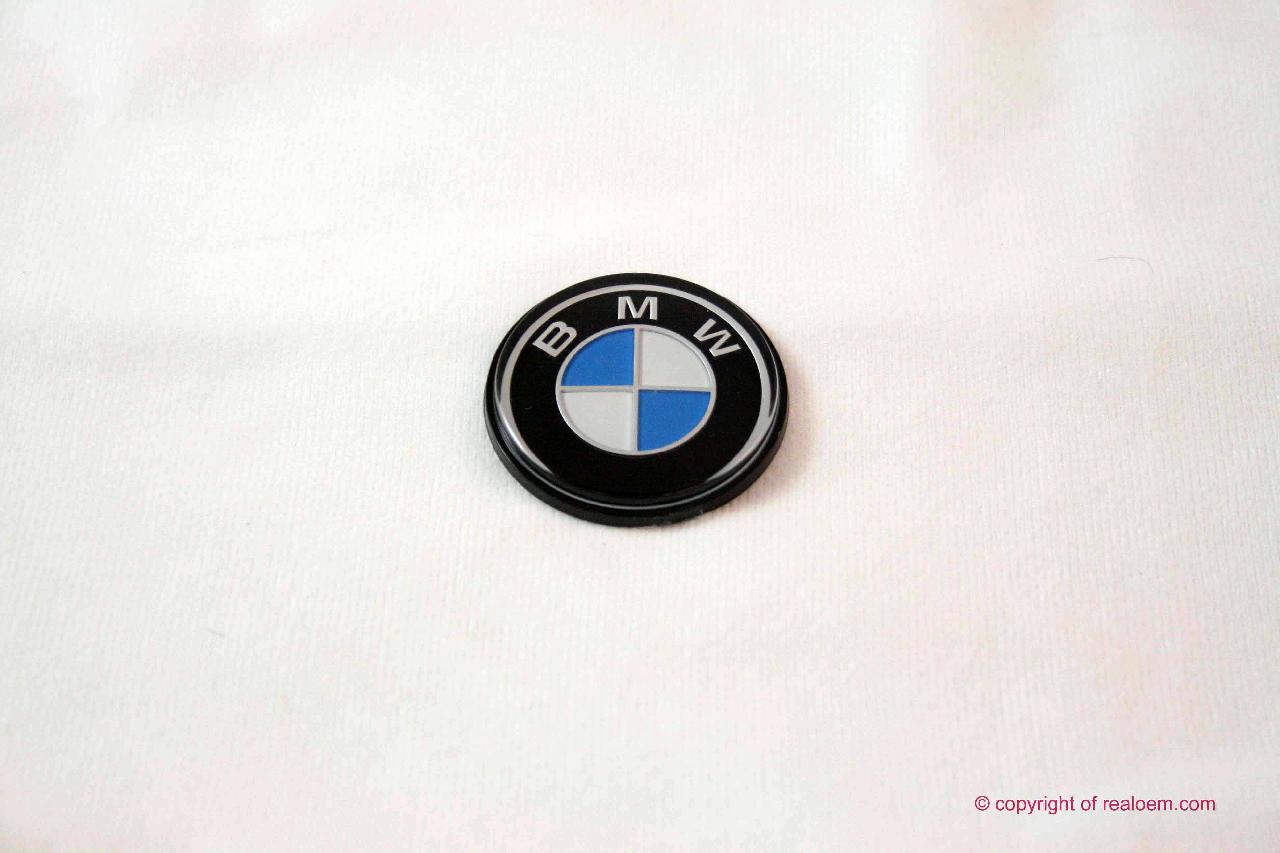

| 03 | Badge | 1 | 32711238280 | $9.02 | Shop at ECS Tuning | |||||

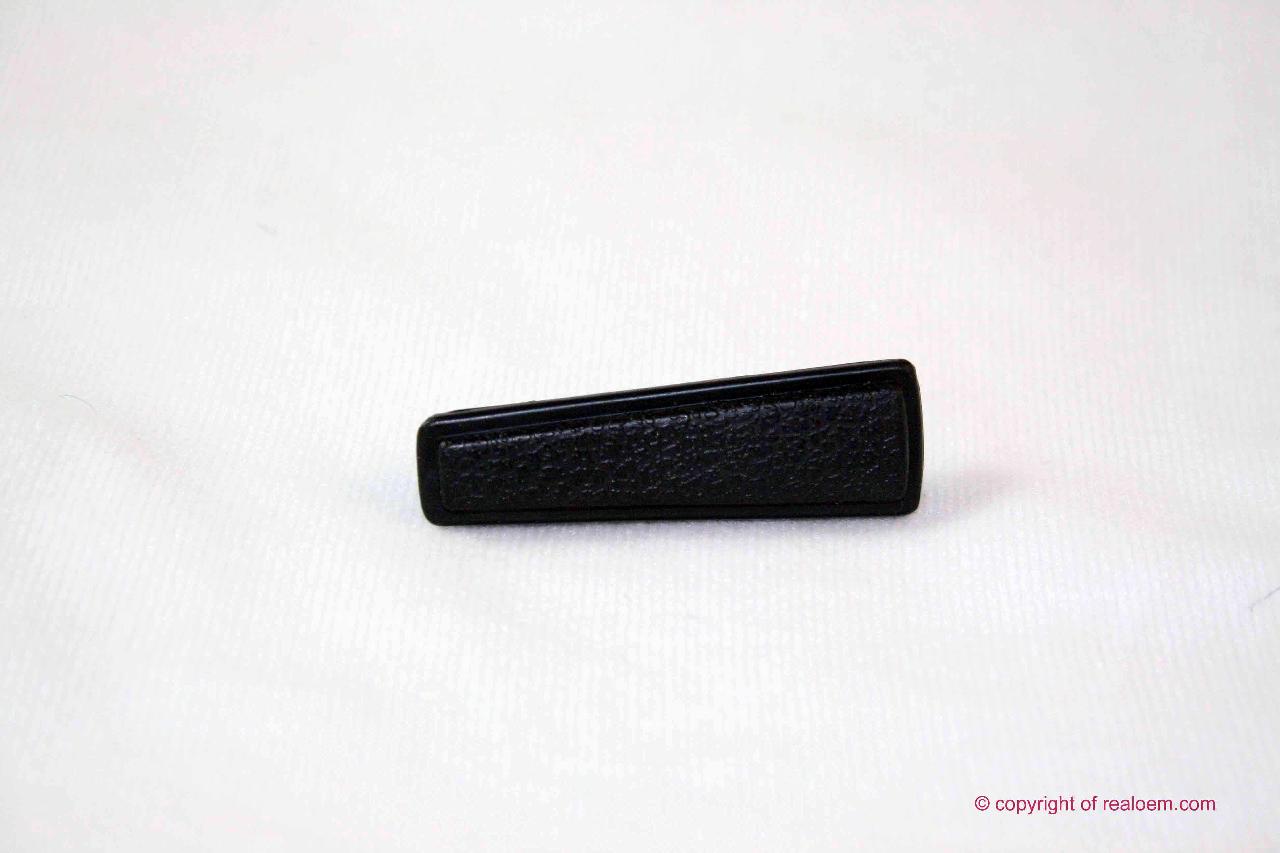

| 04 | Horn pad | 4 | 32331110939 | $3.71 | ENDED | Shop at ECS Tuning | ||||
| 05 | contact spring | 4 | 32331150830 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | 4 | 32331110962 | $0.45 | Shop at ECS Tuning | |||||
| 07 | Slip ring | 1 | 32331110938 | ENDED | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M3,5X8 | 2 | 32331117126 | $0.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
