Rear-axle-drive parts for BMW 1500-2000CS 1800 (1967)

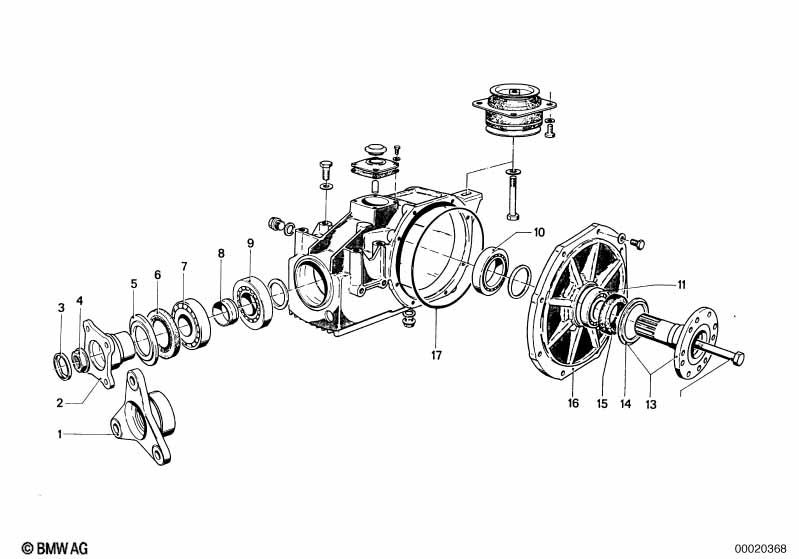

This Rear-axle-drive parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1967.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Drive flange | 1 | 09/1965 | 01/1972 | 33121200282 | ENDED | Shop at ECS Tuning | |||
| 03 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 04 | Collar nut | 1 | 09/1963 | 01/1972 | 33113604190 | ENDED | Shop at ECS Tuning | |||
| 04 | Collar nut | 1 | 09/1963 | 01/1972 | 33113604190 | ENDED | Shop at ECS Tuning | |||
| 04 | Collar nut | M20X1,5 | 1 | 09/1965 | 01/1972 | 33121200258 | $8.56 | Shop at ECS Tuning | ||
| 05 | Dustcover plate | 81MM | 1 | 33121200284 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 07 | Tapered roller bearing | 31,7X73,0X29,3 | 1 | 33121204312 | Shop at ECS Tuning | |||||
| 08 | Clamping bush | 1 | 33121744368 | $9.14 | Shop at ECS Tuning | |||||
| 09 | Tapered roller bearing | 1 | 33121204315 | Shop at ECS Tuning | ||||||
| 10 | Tapered roller bearing | 2 | 33131204568 | Shop at ECS Tuning | ||||||
| 11 | Grooved ball bearing | 160 06 | 2 | 07119981720 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M12X1,5X100 | 2 | 07119914670 | ENDED | Shop at ECS Tuning | ||||
| 13 | Drive flange | 2 | 33211200325 | ENDED | Shop at ECS Tuning | |||||
| 14 | Dustcover plate | 61MM | 2 | 33413704139 | $1.02 | ENDED | Shop at ECS Tuning | |||
| 15 | Shaft seal | 2 | 33121210295 | Shop at ECS Tuning | ||||||
| 16 | Housing cover | 1 | 33111206165 | ENDED | Shop at ECS Tuning | |||||
| 17 | O-ring | 1 | 33113704163 | $5.14 | Shop at ECS Tuning | |||||
| 17 | O-ring | 1 | 33111204119 | ENDED | Shop at ECS Tuning |
