Output shaft for BMW 1500-2000CS 1500 (1964)

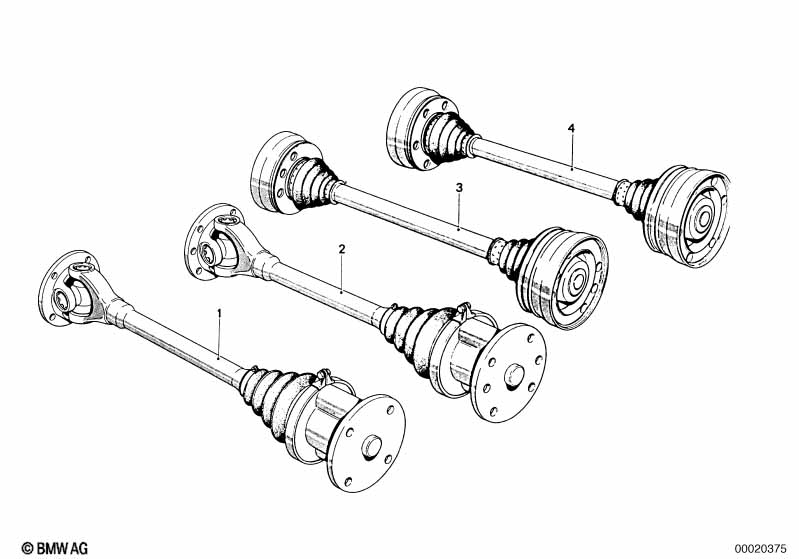

This Output shaft technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. output shaft | 4-LOCH | 2 | 02/1962 | 12/1964 | 33213614950 | ENDED | Shop at ECS Tuning | ||
| 03 | Vl output shaft | ASYMMETRISCH | 2 | 33213614860 | ENDED | Shop at ECS Tuning | ||||
| 04 | RP REMAN output shaft | SYMMETRISCH | 2 | 33211105427 | $477.85 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1500 Output shaft?
- This technical diagram illustrates the Output shaft within the Rear Axle group for the 1500-2000CS 1500 produced during 1964. It provides a detailed exploded view of the components, identifying key parts such as the Exch. output shaft (Part #33213614950).
- Which models use the hardware listed in this Output shaft?
- The hardware and components featured in the Output shaft are specific to the 1500-2000CS 1500 produced during 1964. These technical specifications ensure that parts like the Exch. output shaft (33213614950) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Output shaft assembly?
- Each item in the Output shaft corresponds to the numbered list below the illustration. For the 1500-2000CS 1500, you can identify the Exch. output shaft by locating its position on the schematic, which then links to the official BMW part number 33213614950 for the Rear Axle section.
