Limited slip diff.unit-single parts for BMW 1500-2000CS 1500 (1962)

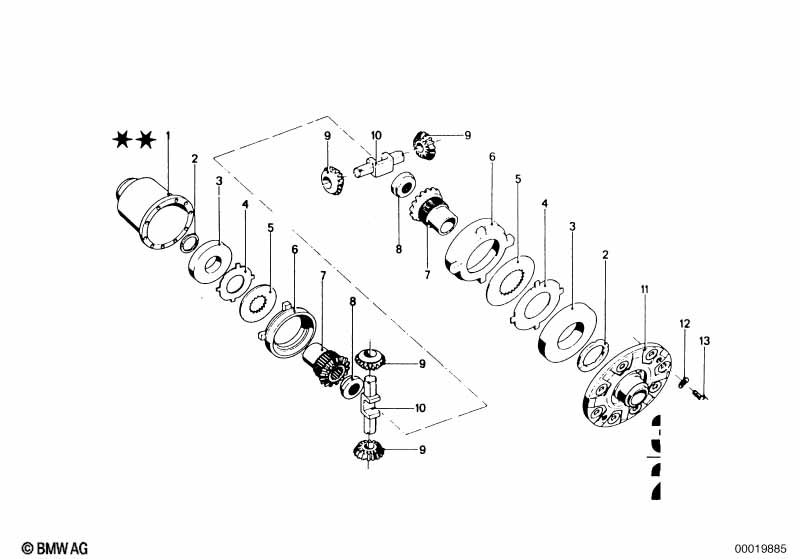

This Limited slip diff.unit-single parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Shim | 4,730MM | X | 33121201677 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,40MM | X | 33141201911 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,35MM | X | 33141201912 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,30MM | X | 33141201913 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,25MM | X | 33141201914 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,20MM | X | 33141201915 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,15MM | X | 33141201916 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,10MM | X | 33141201917 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,05MM | X | 33141201918 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| 02 | Stop disk | 2,00MM | X | 33141205676 | $44.08 | ENDED | Shop at ECS Tuning | |||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 03 | Ring | 2 | 33141201920 | $18.77 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Outer disc | 1,90MM | 2 | 33141203803 | $35.00 | Shop at ECS Tuning | ||||
| 04 | Outer disc | 2,00MM | X | 33141203804 | $35.00 | ENDED | Shop at ECS Tuning | |||
| not suitable for | ||||||||||
| 04 | Outer disc | 2,10MM | X | 33141203805 | $35.42 | ENDED | Shop at ECS Tuning | |||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||

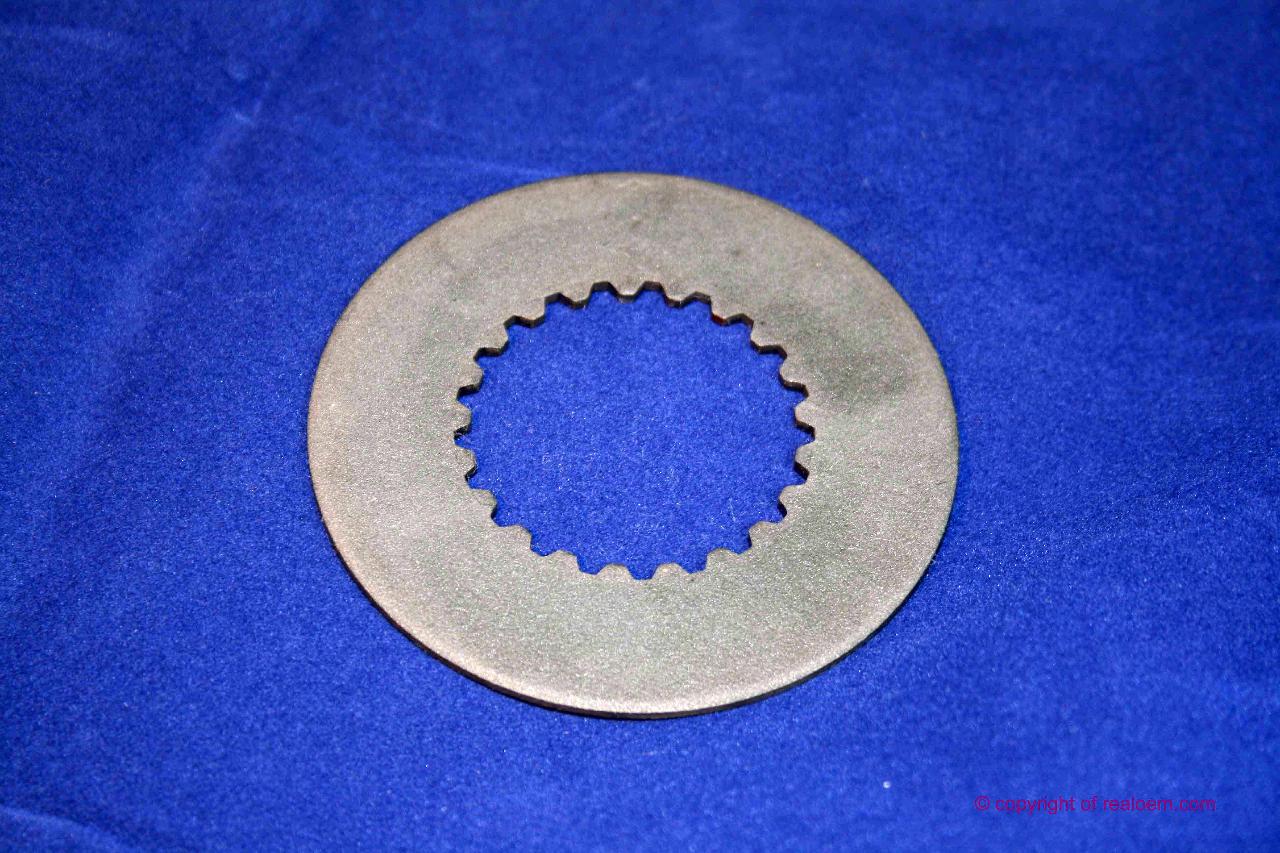

| 05 | Inner disc | 2 | 33141203806 | $56.47 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 06 | Compression ring | 2 | 33141204153 | ENDED | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 07 | Side gear | 2 | 33141201925 | ENDED | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 08 | Threaded washer | 2 | 33141201928 | ENDED | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bevel gear | 4 | 33141203808 | $85.77 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bevel mate shaft | 2 | 33141204154 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| -- | Limited slip diff.unit | X | 33143604050 | $168.52 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
