Crowngear set for BMW 2500-3.3Li 2500 (1971)

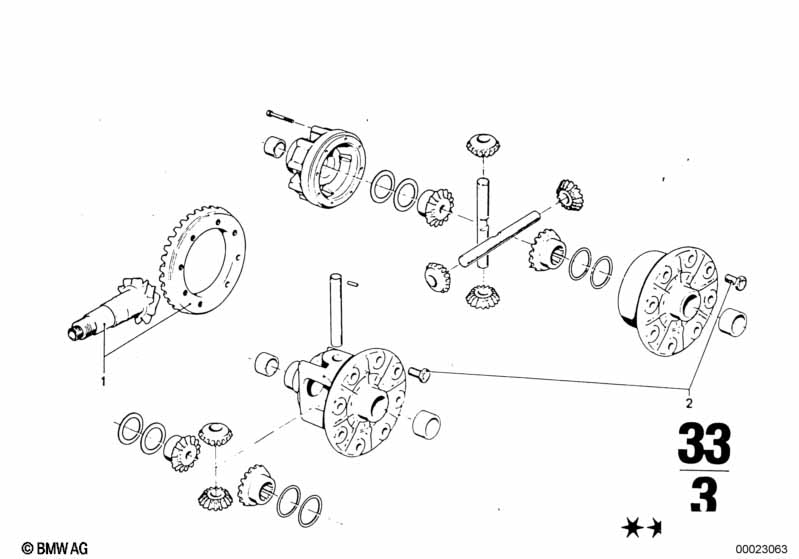

This Crowngear set technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=40:11=3,64 | 1 | 01/1969 | 02/1977 | 33121200222 | ENDED | Shop at ECS Tuning | ||
| 01 | Crowngear set | I=40:11=3,64 | 1 | 01/1969 | 02/1977 | 33121203075 | ENDED | Shop at ECS Tuning | ||
| 01 | Crowngear set | I=40:11=3,64 | 1 | 01/1969 | 02/1977 | 33121206319 | $652.86 | ENDED | Shop at ECS Tuning | |
| 02 | Hex bolt | M10X24 | 8 | 01/1969 | 02/1977 | 33113704165 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
