Suspension, stabilizer bar for BMW 2500-3.3Li 2500 (1971)

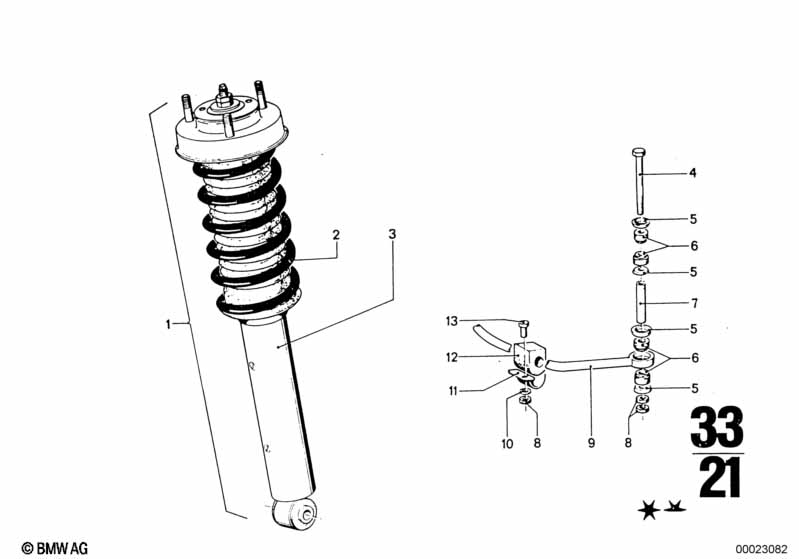

This Suspension, stabilizer bar technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 04 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 05 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 06 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Stabilizer, rear | D=16MM | 1 | 33551123944 | $96.57 | Shop at ECS Tuning | ||||
| 10 | Washer | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Stabilizer support | 2 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 12 | Stabilizer rubber mounting | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Suspension, stabilizer bar?
- This technical diagram illustrates the Suspension, stabilizer bar within the Rear Axle group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119912595).
- Which models use the hardware listed in this Suspension, stabilizer bar?
- The hardware and components featured in the Suspension, stabilizer bar are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Hex bolt (07119912595) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suspension, stabilizer bar assembly?
- Each item in the Suspension, stabilizer bar corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119912595 for the Rear Axle section.
