Suspension, stabilizer bar for BMW 2500-3.3Li 2500 (1971)

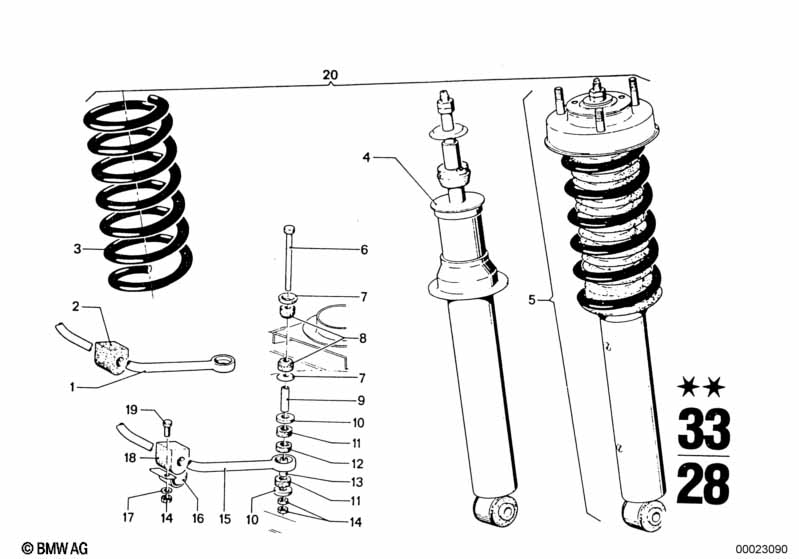

This Suspension, stabilizer bar technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Suspension, trailer towing |
=Yes |
|||||||||
| 01 | Stabilizer | D=20MM | 1 | 31351106847 | $96.26 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber Mounting | D=20MM | 2 | 31351106862 | $18.38 | Shop at ECS Tuning | ||||
| 03 | Coil spring | 2 | 05/1971 | 02/1977 | 33531112113 | $155.12 | ENDED | Shop at ECS Tuning | ||
| 04 | Shock absorber, rear | 2 | 05/1971 | 02/1977 | 33521109020 | ENDED | Shop at ECS Tuning | |||
| 04 | Shock absorber, rear | BOGE | 2 | 05/1971 | 02/1977 | 33521108173 | $435.27 | ENDED | Shop at ECS Tuning | |
| 05 | Spring strut, rear | 2 | 05/1971 | 02/1977 | 33521109022 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X180 | 2 | 07119912597 | $5.38 | ENDED | Shop at ECS Tuning | |||
| 07 | Plate | 4 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 08 | Rubber Ring | 4 | 33551103719 | $3.64 | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 10 | Washer | 4 | 33551103720 | $0.97 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bump stop | 4 | 33551103718 | $5.14 | Shop at ECS Tuning | |||||
| 12 | Hose | 2 | 33531104057 | $4.18 | Shop at ECS Tuning | |||||
| 13 | Spacer tube | 4 | 33551103721 | $2.70 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M8-8-ZNS3 | 8 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Stabilizer, rear | D=16MM | 1 | 33551123944 | $96.57 | Shop at ECS Tuning | ||||
| 17 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 18 | Stabilizer rubber mounting | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 20 | Suspension for trailer hitch | 1 | 33501109092 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
