Self-levelling suspension for BMW 2500-3.3Li 2500 (1971)

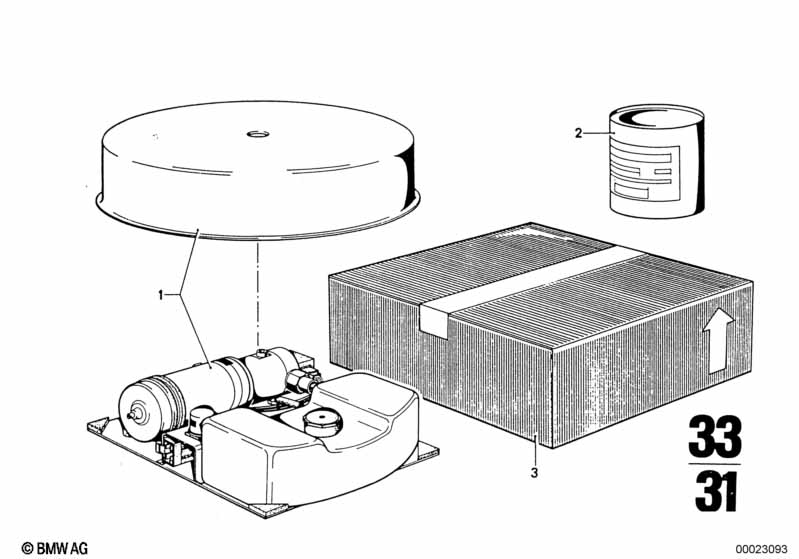

This Self-levelling suspension technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 01 | Hydro unit | 1 | 37121112801 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hydraulic oil | 20L | X | 31329196903 | ENDED | Shop at ECS Tuning | ||||
| 02 | Telescoping fork oil | 2500ML | X | 31429060537 | $52.12 | ENDED | Shop at ECS Tuning | |||
| 03 | Set, ride-height control, Hoesch | 1 | 08/1968 | 02/1977 | 37121115793 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
