rear axle with suspension for BMW V8 3200CS (1962)

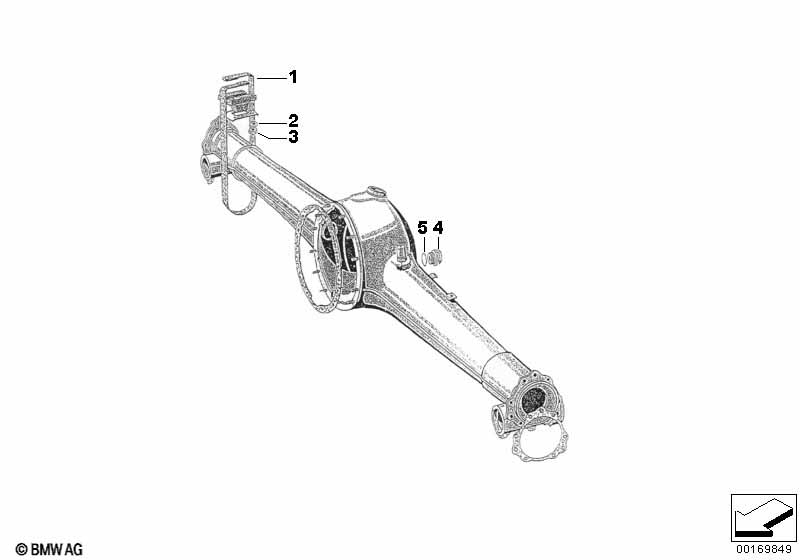

This rear axle with suspension technical drawing provides a detailed breakdown of the assembly for the V8 3200CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catch | LINKS | 1 | 33333550156 | ENDED | Shop at ECS Tuning | ||||
| 01 | Catch | RECHTS | 1 | 33333550157 | ENDED | Shop at ECS Tuning | ||||
| 02 | Spring washer Black | B6-ZN | 8 | 09/1965 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 02 | Washer | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Screw plug | M18X1,5-ZNNIV | 2 | 07119905428 | $11.47 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 2 | 24111215097 | $1.64 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW V8 3200CS rear axle with suspension?
- This technical diagram illustrates the rear axle with suspension within the Rear Axle group for the V8 3200CS produced during 1962. It provides a detailed exploded view of the components, identifying key parts such as the Catch (Part #33333550156).
- Which models use the hardware listed in this rear axle with suspension?
- The hardware and components featured in the rear axle with suspension are specific to the V8 3200CS produced during 1962. These technical specifications ensure that parts like the Catch (33333550156) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the rear axle with suspension assembly?
- Each item in the rear axle with suspension corresponds to the numbered list below the illustration. For the V8 3200CS, you can identify the Catch by locating its position on the schematic, which then links to the official BMW part number 33333550156 for the Rear Axle section.
