Front wheel brake for BMW 1500-2000CS 1800tiSA (1965)

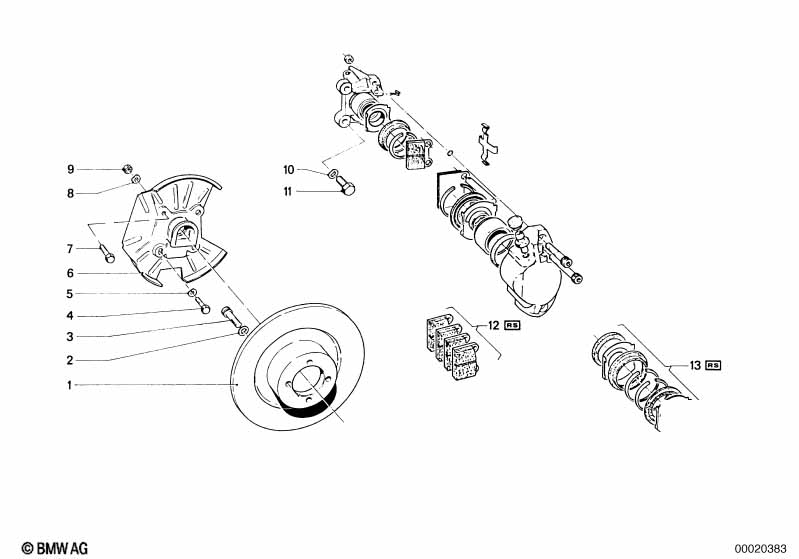

This Front wheel brake technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800tiSA. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1965.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake disk | 272X13 | 2 | 34111152088 | $161.06 | Shop at ECS Tuning | ||||
| 02 | Set spring washer 20 | B10 | 8 | 07509064021 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M10X25-10.9 PHR | 8 | 07119919994 | $0.84 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection plate | 1 | 34112760115 | ENDED | Shop at ECS Tuning | |||||
| 07 | Screw | 2 | 34112760117 | ENDED | Shop at ECS Tuning | |||||
| 08 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNS3 | 4 | 02/1970 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 09 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 12 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 12/1968 | 34111160171 | $36.89 | Shop at ECS Tuning | |||
| 12 | Repair kit, brake pads | 1 | 34112660187 | ENDED | Shop at ECS Tuning | |||||
| 13 | Repair set brake caliper | 2 | 34111103245 | ENDED | Shop at ECS Tuning |
