Front brake, circuit 2 for BMW 1500-2000CS 1800 (1969)

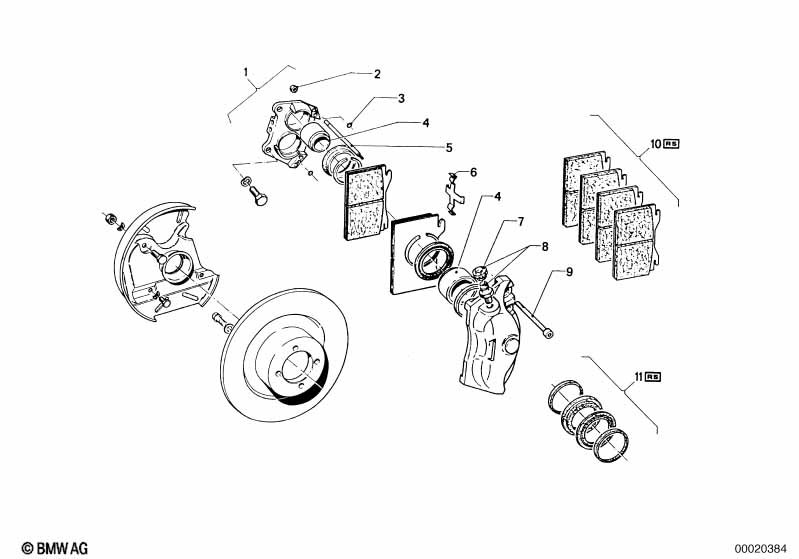

This Front brake, circuit 2 technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| front left | ||||||||||
| 01 | Caliper with out brake pads right | 1 | 34111101094 | $413.89 | ENDED | Shop at ECS Tuning | ||||
| front right | ||||||||||
| 01 | Caliper with out brake pads left | 1 | 34111101093 | $413.89 | Shop at ECS Tuning | |||||
| 06 | Set mounting parts | 1 | 34111113663 | $30.03 | Shop at ECS Tuning | |||||
| 10 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111159257 | $92.64 | ENDED | Shop at ECS Tuning | |||
| 11 | Repair set brake caliper | ATE | 1 | 34111158692 | $46.19 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
