Expansion tank for BMW 1500-2000CS 1800 (1969)

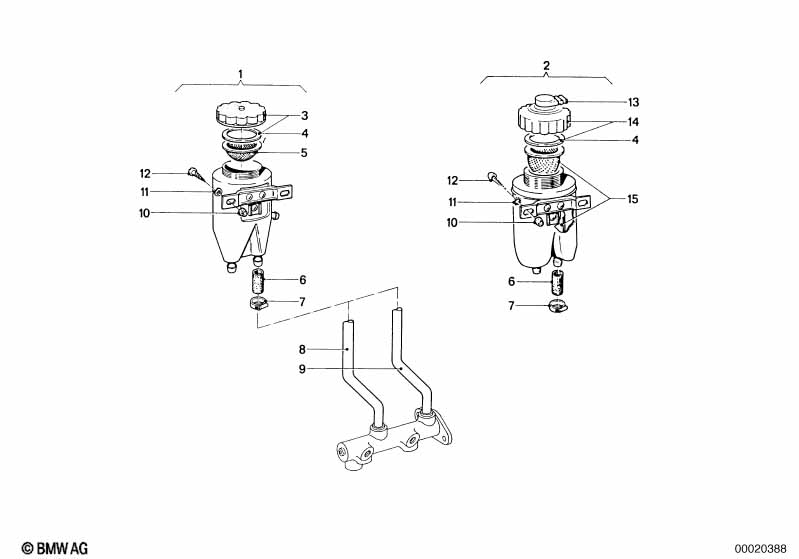

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 2 AUSGÄNGE | 1 | 07/1968 | 08/1971 | 34321112400 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover lid | 1 | 07/1968 | 01/1972 | 34321102797 | $8.15 | Shop at ECS Tuning | |||
| 04 | Gasket | 1 | 34321102798 | $2.82 | Shop at ECS Tuning | |||||
| 05 | Strainer tube | 1 | 34321102796 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Cap | 2 | 51135676199 | $0.79 | Shop at ECS Tuning | |||||
| 11 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex head screw | ST6,3X13-C | 2 | 07119916823 | $0.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 14 | Cover lid | 1 | 34321103064 | $27.58 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cap with warning switch | 1 | 34322225602 | $31.31 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Strainer tube | 1 | 34321120843 | $6.35 | Shop at ECS Tuning | |||||
| 15 | Strainer with float | 1 | 34321103065 | $23.22 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Expansion tank?
- This technical diagram illustrates the Expansion tank within the Brakes group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #34321112400).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Expansion tank (34321112400) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 34321112400 for the Brakes section.
