Power brake for BMW 1500-2000CS 1800 (1968)

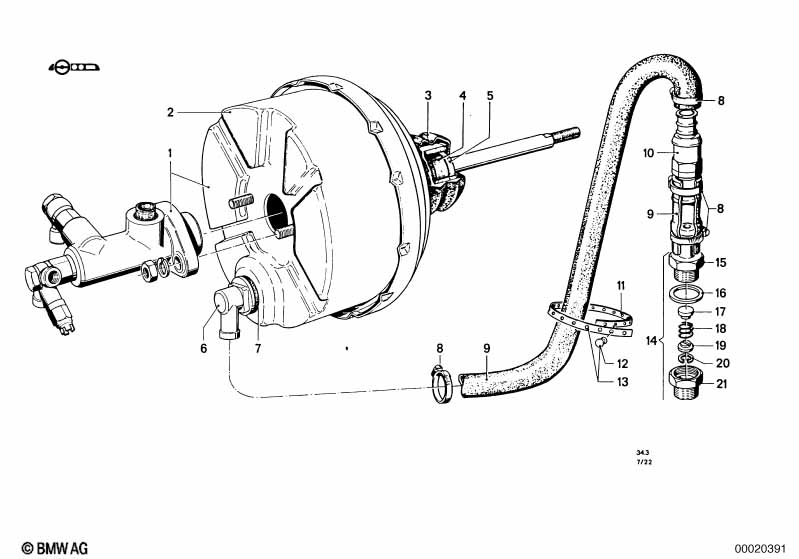

This Power brake technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Power brake | ATE T 51 | 1 | 09/1963 | 12/1968 | 34331103340 | ENDED | Shop at ECS Tuning | ||
| 03 | Protection cap | 1 | 09/1963 | 12/1968 | 34334650142 | $12.36 | ENDED | Shop at ECS Tuning | ||
| 04 | Air cleaner | 1 | 09/1963 | 12/1968 | 34334650141 | $2.00 | ENDED | Shop at ECS Tuning | ||
| 05 | Absorber | 1 | 09/1963 | 12/1968 | 34334650147 | $7.88 | Shop at ECS Tuning | |||
| 06 | non-return valve | 1 | 09/1963 | 12/1968 | 34334650140 | ENDED | Shop at ECS Tuning | |||
| 08 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 09 | Hose | 12X19 | X | 34331108710 | $23.58 | Shop at ECS Tuning | ||||
| 10 | Valve | 1 | 34334650179 | ENDED | Shop at ECS Tuning | |||||
| 14 | non-return valve | 1 | 34331101720 | ENDED | Shop at ECS Tuning | |||||
| 21 | Connector | 1 | 34331101562 | ENDED | Shop at ECS Tuning | |||||
| 22 | Connector | 1 | 34334650181 | $18.86 | ENDED | Shop at ECS Tuning | ||||
| 23 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Power brake?
- This technical diagram illustrates the Power brake within the Brakes group for the 1500-2000CS 1800 produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331103340).
- Which models use the hardware listed in this Power brake?
- The hardware and components featured in the Power brake are specific to the 1500-2000CS 1800 produced during 1968. These technical specifications ensure that parts like the Power brake (34331103340) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake assembly?
- Each item in the Power brake corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331103340 for the Brakes section.
