Power brake for BMW 1500-2000CS 1800 (1969)

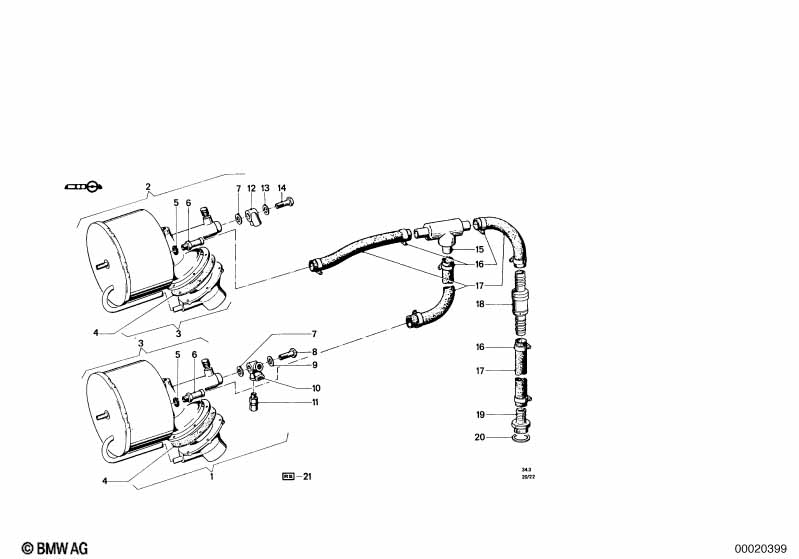

This Power brake technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Power brake | ATE T 50 | 2 | 34331103339 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket | 2 | 34331101071 | ENDED | Shop at ECS Tuning | |||||
| 05 | Gasket ring | A14X20-CU | 2 | 07119963226 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Connector | 2 | 34331103316 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket ring | 2 | 34331151743 | $14.17 | Shop at ECS Tuning | |||||
| 08 | Screw | 2 | 34314650341 | $7.92 | ENDED | Shop at ECS Tuning | ||||

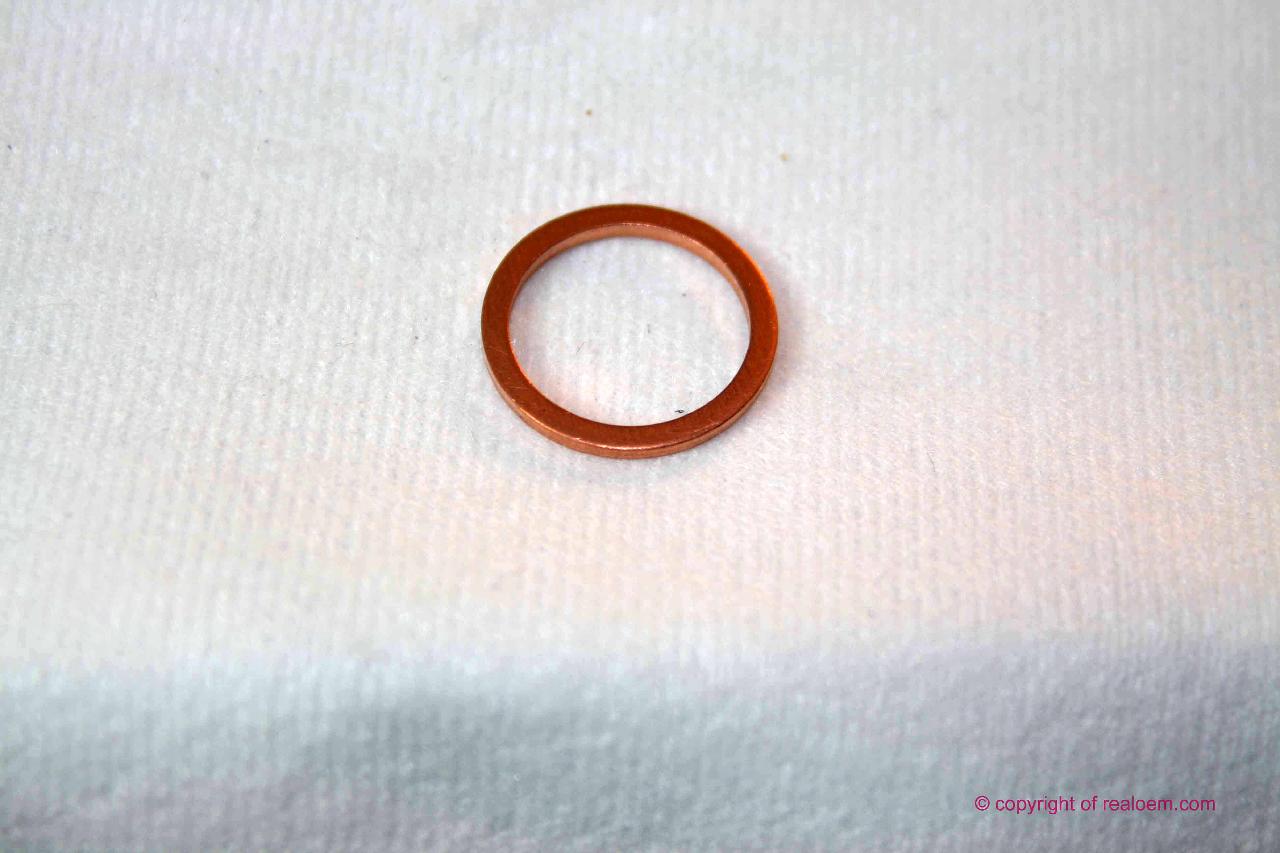

| 09 | Gasket ring | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Connector | 1 | 02/1969 | 01/1972 | 34314650339 | ENDED | Shop at ECS Tuning | |||
| 11 | Pre-pressure valve | 1 | 34314650330 | $38.22 | Shop at ECS Tuning | |||||
| 12 | Connector | 1 | 02/1969 | 01/1972 | 34331151745 | $18.30 | ENDED | Shop at ECS Tuning | ||
| 13 | Gasket ring | A12X16-CU | 1 | 02/1969 | 01/1972 | 07119963132 | $0.38 | Shop at ECS Tuning | ||
| 14 | Hollow bolt | 1 | 02/1969 | 01/1972 | 35331151747 | ENDED | Shop at ECS Tuning | |||
| 15 | Distribution piece | 1 | 02/1969 | 01/1972 | 34331103544 | $3.48 | Shop at ECS Tuning | |||

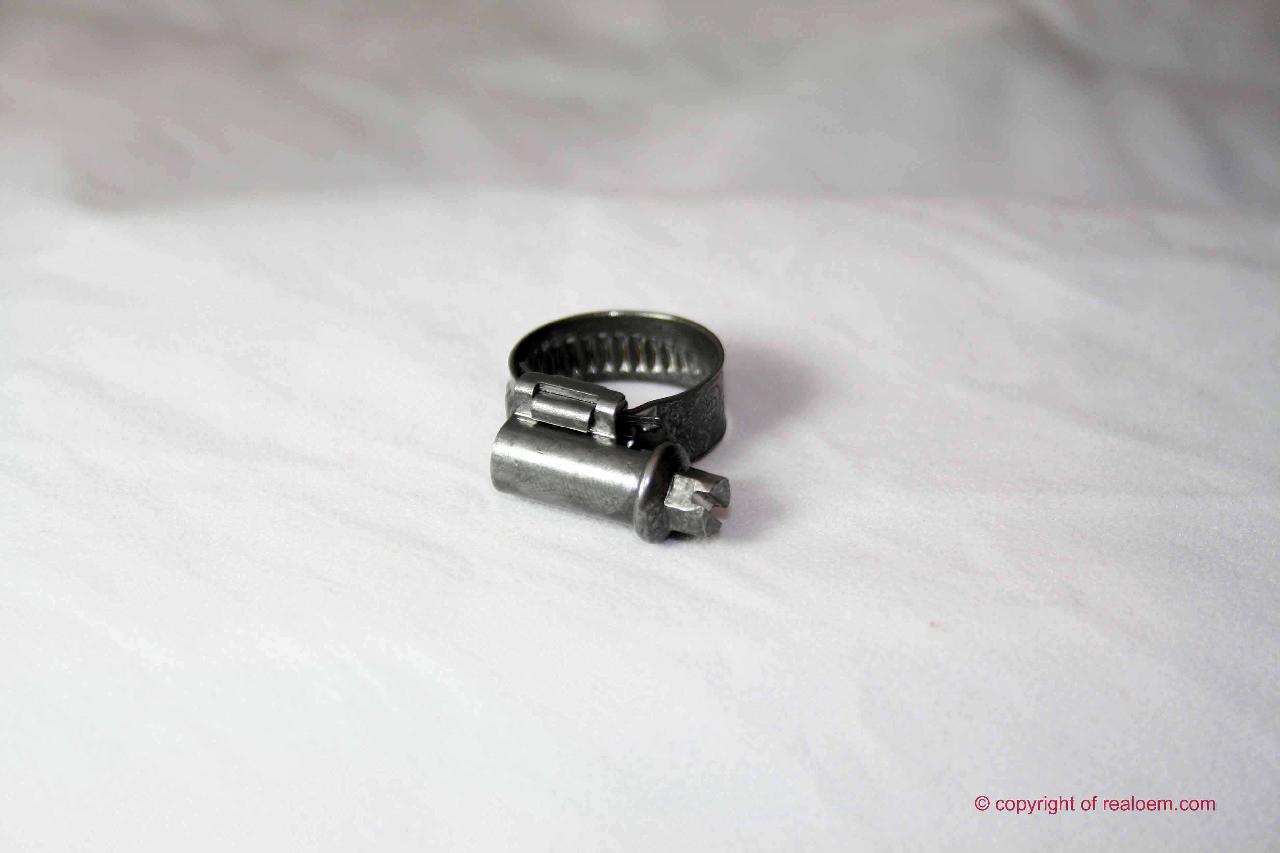

| 16 | Hose clamp | L15-19 | 8 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 17 | Hose | 12X19 | X | 34331108710 | $23.58 | Shop at ECS Tuning | ||||
| 18 | non-return valve | 1 | 34331151533 | Shop at ECS Tuning | ||||||
| 19 | Connector | 1 | 34331102538 | $18.21 | ENDED | Shop at ECS Tuning | ||||
| 20 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 21 | Repair kit power brake unit | ATE T 50 | 2 | 34331103287 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
