Pressure regulator/pressure accumulator for BMW 1500-2000CS 1800 (1969)

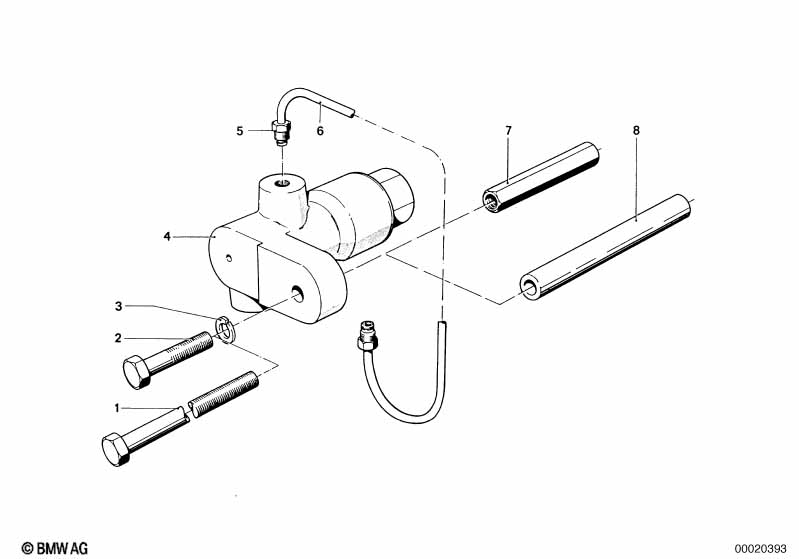

This Pressure regulator/pressure accumulator technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Brake pressure regulator | 1 | 34344750014 | ENDED | Shop at ECS Tuning | |||||
| 05 | Pipe | M10/M10-260MM | 1 | 34326755555 | $5.83 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 34344750016 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Pressure regulator/pressure accumulator?
- This technical diagram illustrates the Pressure regulator/pressure accumulator within the Brakes group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913662).
- Which models use the hardware listed in this Pressure regulator/pressure accumulator?
- The hardware and components featured in the Pressure regulator/pressure accumulator are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Hex bolt (07119913662) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pressure regulator/pressure accumulator assembly?
- Each item in the Pressure regulator/pressure accumulator corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913662 for the Brakes section.
