Front wheel brake for BMW 2500-3.3Li 3.3L (1974)

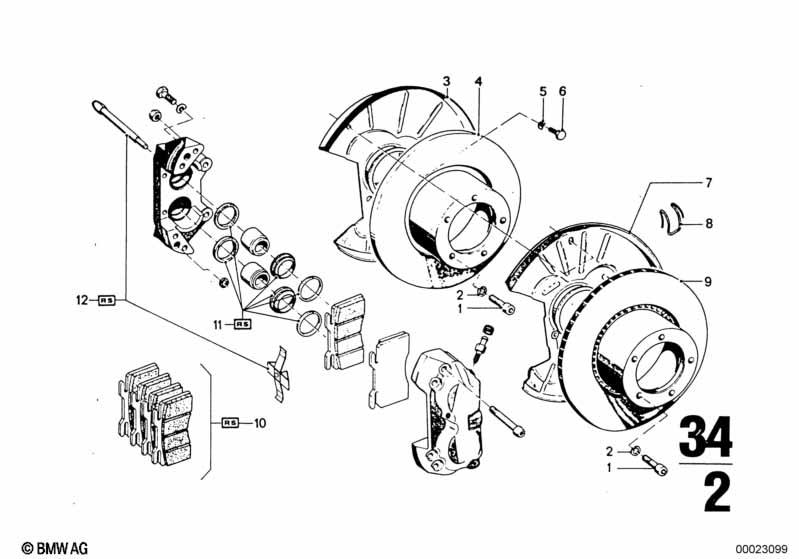

This Front wheel brake technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister-head screw | M10X25-10.9 PHR | 10 | 07119919994 | $0.84 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B10-ZNS3 | 10 | 07119904463 | Shop at ECS Tuning | |||||
| 05 | Wave washer | B6 | 6 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 6 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Protection plate left | 1 | 05/1971 | 02/1977 | 34111111335 | $52.39 | ENDED | Shop at ECS Tuning | ||
| 07 | Protection plate left | 1 | 05/1971 | 02/1977 | 34111111335 | $52.39 | ENDED | Shop at ECS Tuning | ||
| 07 | Protection plate right | 1 | 05/1971 | 02/1977 | 34111111336 | $52.39 | ENDED | Shop at ECS Tuning | ||
| 07 | Protection plate right | 1 | 05/1971 | 02/1977 | 34111111336 | $52.39 | ENDED | Shop at ECS Tuning | ||
| 08 | Clamp | 4,5 GR. | X | 05/1971 | 02/1977 | 34111107691 | ENDED | Shop at ECS Tuning | ||
| 08 | Clamp | 4,5 GR. | X | 05/1971 | 02/1977 | 34111107691 | ENDED | Shop at ECS Tuning | ||
| 08 | Clamp | 9,0 GR. | X | 05/1971 | 02/1977 | 34111107692 | $9.37 | ENDED | Shop at ECS Tuning | |
| 08 | Clamp | 9,0 GR. | X | 05/1971 | 02/1977 | 34111107692 | $9.37 | ENDED | Shop at ECS Tuning | |
| 09 | Brake disk | 272X22 | 2 | 05/1971 | 02/1977 | 34111152090 | $190.76 | ENDED | Shop at ECS Tuning | |
| 09 | Brake disk | 272X22 | 2 | 05/1971 | 02/1977 | 34111152090 | $190.76 | ENDED | Shop at ECS Tuning | |
| 10 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111159257 | $92.64 | ENDED | Shop at ECS Tuning | |||
| 11 | Repair set brake caliper | ATE | 2 | 08/1968 | 02/1977 | 34111158692 | $46.19 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Front wheel brake?
- This technical diagram illustrates the Front wheel brake within the Brakes group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Fillister-head screw (Part #07119919994).
- Which models use the hardware listed in this Front wheel brake?
- The hardware and components featured in the Front wheel brake are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Fillister-head screw (07119919994) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front wheel brake assembly?
- Each item in the Front wheel brake corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Fillister-head screw by locating its position on the schematic, which then links to the official BMW part number 07119919994 for the Brakes section.
