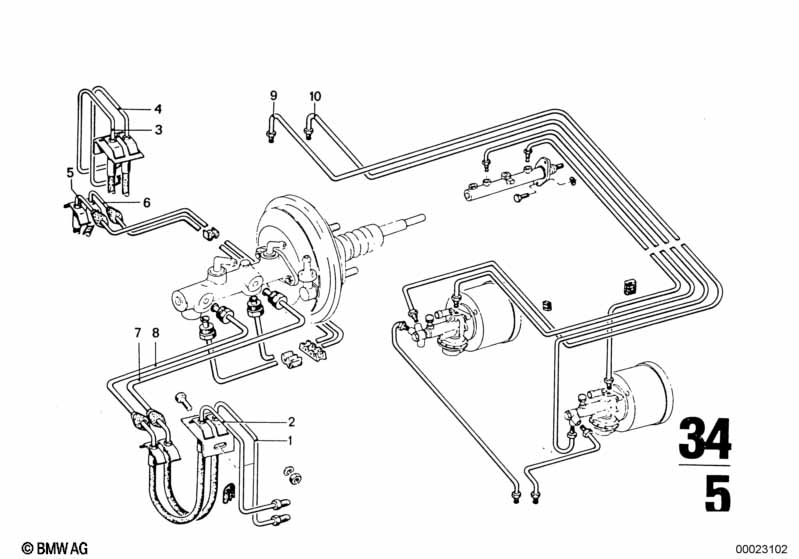

Brake pipe, front for BMW 2500-3.3Li 3.3Li (1975)
This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-360MM | 1 | 09/1973 | 02/1977 | 34326755565 | $7.60 | Shop at ECS Tuning | ||
| 02 | Pipe | M10/M10-340MM | 1 | 09/1973 | 02/1977 | 34326755563 | $7.60 | Shop at ECS Tuning | ||
| 03 | Pipe | M10/M10-340MM | 1 | 09/1973 | 02/1977 | 34326755563 | $7.60 | Shop at ECS Tuning | ||
| 04 | Pipe | M10/M10-360MM | 1 | 09/1973 | 02/1977 | 34326755565 | $7.60 | Shop at ECS Tuning | ||
| 05 | Pipe | M10/M10-1845MM | 1 | 05/1971 | 02/1977 | 34326755640 | $10.03 | ENDED | Shop at ECS Tuning | |
| 06 | Pipe | M10/M10-1705MM | 1 | 05/1971 | 02/1977 | 34326755636 | $10.03 | Shop at ECS Tuning | ||
| 07 | Pipe | M10/M10-751MM | 1 | 05/1971 | 02/1977 | 34326755591 | $8.65 | Shop at ECS Tuning | ||
| 08 | Pipe | M10/M10-751MM | 1 | 05/1971 | 02/1977 | 34326755591 | $8.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
