Brake pipe rear for BMW 2500-3.3Li 2800 (1969)

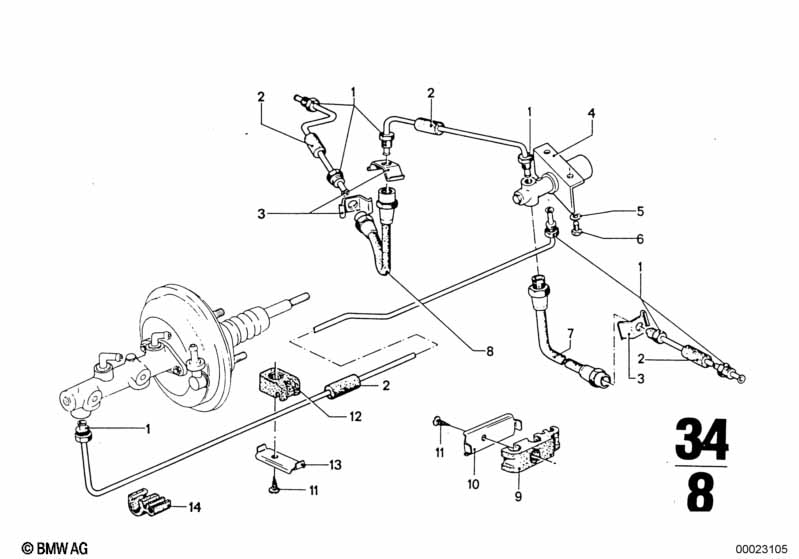

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | M10X1 | 8 | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber grommet | 15 | 34324050540 | $1.32 | Shop at ECS Tuning | |||||
| 03 | Clip | 3 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Brake pressure regulator | 1 | 34344750020 | $210.92 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X12 | 2 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Brake hose rear | L=200MM | 1 | 08/1968 | 02/1977 | 34321159881 | $30.11 | Shop at ECS Tuning | ||
| 08 | Brake hose rear | L=222MM | 1 | 08/1968 | 02/1977 | 34321159878 | $38.29 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Brake pipe rear?
- This technical diagram illustrates the Brake pipe rear within the Brakes group for the 2500-3.3Li 2800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Connector (Part #34321151806).
- Which models use the hardware listed in this Brake pipe rear?
- The hardware and components featured in the Brake pipe rear are specific to the 2500-3.3Li 2800 produced during 1969. These technical specifications ensure that parts like the Connector (34321151806) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe rear assembly?
- Each item in the Brake pipe rear corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Connector by locating its position on the schematic, which then links to the official BMW part number 34321151806 for the Brakes section.
