Brake master cylinder w.power brake unit for BMW 2500-3.3Li 3.3Li (1975)

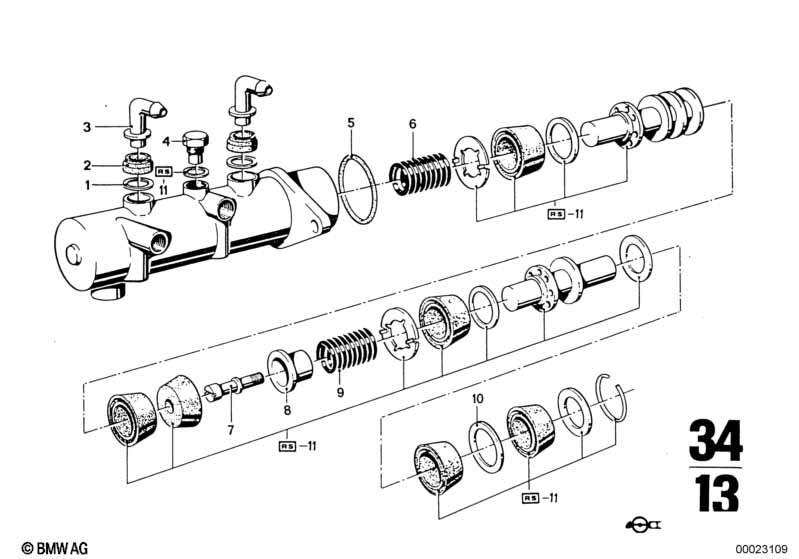

This Brake master cylinder w.power brake unit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 2 | 34314650172 | $1.12 | Shop at ECS Tuning | |||||
| 02 | Plug | 17/8 | 2 | 34311103205 | $3.17 | Shop at ECS Tuning | ||||
| 02 | Plug | 22/8 | 2 | 34311121911 | $6.22 | Shop at ECS Tuning | ||||
| 03 | Connector | 2 | 34321102282 | $4.16 | Shop at ECS Tuning | |||||
| 04 | Stopper bolt outer | ATE | 1 | 34311103475 | $4.98 | ENDED | Shop at ECS Tuning | |||
| 05 | O-ring | ATE | 1 | 34314650345 | $3.25 | Shop at ECS Tuning | ||||
| 06 | Compression spring primary | D=23.81 | 1 | 34311103203 | ENDED | Shop at ECS Tuning | ||||
| 07 | Stopper bolt inner | D=23,81 | 1 | 34311103474 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sleeve | D=23,81 | 1 | 34311103204 | ENDED | Shop at ECS Tuning | ||||
| 09 | Compression spring secondary | D=23,81 | 1 | 34311103202 | ENDED | Shop at ECS Tuning | ||||
| 10 | Intermediate ring | 1 | 34311103265 | ENDED | Shop at ECS Tuning | |||||
| 11 | Repair kit brake master cylinder | D=23,81MM | 1 | 34311103743 | $147.05 | ENDED | Shop at ECS Tuning |
