Accelerator pedal/rod assy for BMW 1500-2000CS 1800 (1969)

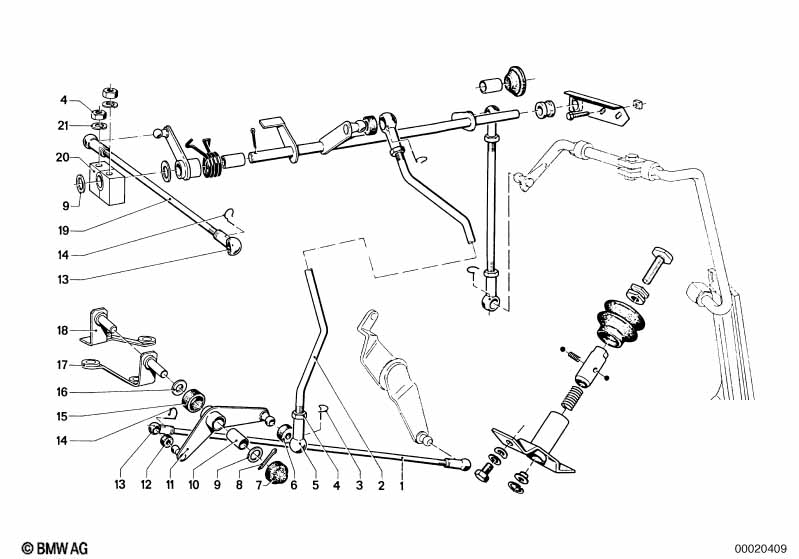

This Accelerator pedal/rod assy technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Rod | 1 | 35414640240 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bushing | 1 | 35414640221 | ENDED | Shop at ECS Tuning | |||||
| 11 | Pitman arm | 1 | 35414640229 | ENDED | Shop at ECS Tuning | |||||
| 14 | Lock Ring | R8 | 2 | 07119987607 | ENDED | Shop at ECS Tuning | ||||
| 18 | Washer | 4 | 35114640231 | ENDED | Shop at ECS Tuning | |||||
| 20 | Supporting bracket | 1 | 35411200797 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Accelerator pedal/rod assy?
- This technical diagram illustrates the Accelerator pedal/rod assy within the Pedals group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Rod (Part #35414640240).
- Which models use the hardware listed in this Accelerator pedal/rod assy?
- The hardware and components featured in the Accelerator pedal/rod assy are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Rod (35414640240) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accelerator pedal/rod assy assembly?
- Each item in the Accelerator pedal/rod assy corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Rod by locating its position on the schematic, which then links to the official BMW part number 35414640240 for the Pedals section.
