Accelerator pedal/rod assy for BMW 1500-2000CS 1800 (1969)

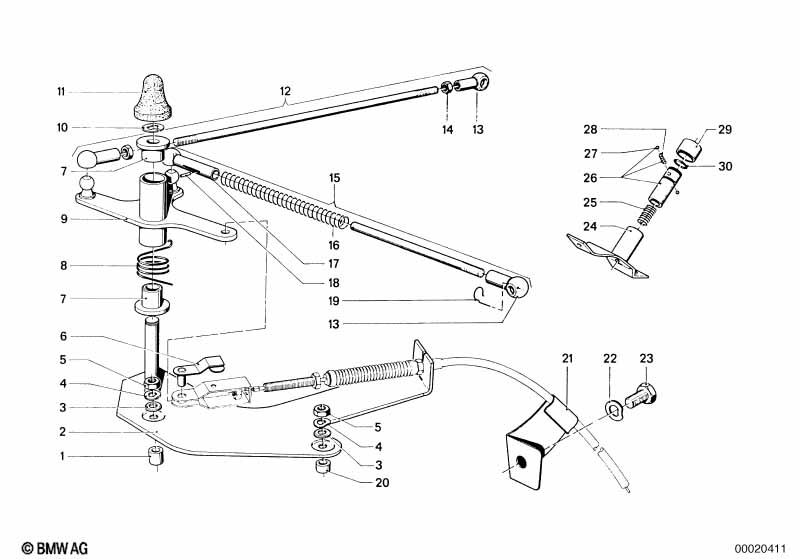

This Accelerator pedal/rod assy technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spacer tube | 1 | 35411200976 | ENDED | Shop at ECS Tuning | |||||
| 02 | Support | 1 | 35411200933 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | A6,4-ZNNIV SI | 3 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Wave washer | B6 | 3 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Bolt | 1 | 24511201415 | $1.58 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bush | 2 | 13210743138 | ENDED | Shop at ECS Tuning | |||||
| 08 | Retainer spring | 1 | 13210642193 | $3.68 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pitman arm | 1 | 35411200882 | ENDED | Shop at ECS Tuning | |||||
| 10 | Circlip | 1 | 07119932860 | ENDED | Shop at ECS Tuning | |||||
| 11 | Cap | 1 | 13210642184 | $155.12 | ENDED | Shop at ECS Tuning | ||||
| 12 | Pull rod | 1 | 35411200880 | ENDED | Shop at ECS Tuning | |||||
| 13 | Ball socket B8 | 0000000000 | 3 | 07119987507 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 15 | Rod | 1 | 35411200893 | ENDED | Shop at ECS Tuning | |||||
| 16 | Compression spring | 1 | 35411200889 | ENDED | Shop at ECS Tuning | |||||
| 17 | Ball joint | 1 | 35411200965 | ENDED | Shop at ECS Tuning | |||||
| 18 | Clamping bush | 2,5 X 8 | 1 | 07119941303 | ENDED | Shop at ECS Tuning | ||||
| 19 | Lock Ring | R8 | 3 | 07119987607 | ENDED | Shop at ECS Tuning | ||||
| 20 | Spacer tube | 2 | 35411200975 | ENDED | Shop at ECS Tuning | |||||
| 21 | Support shackle | 1 | 35411200951 | ENDED | Shop at ECS Tuning | |||||
| 25 | Compression spring | 1 | 35411102592 | ENDED | Shop at ECS Tuning | |||||
| 26 | Stopper | 1 | 35411103407 | ENDED | Shop at ECS Tuning | |||||
| 27 | Ball | 5,5MM III | 2 | 07119986255 | $0.30 | Shop at ECS Tuning | ||||
| 28 | Compression spring | 1 | 35411100763 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 29 | Dust protection | 1 | 35411100766 | ENDED | Shop at ECS Tuning | |||||
| 30 | Lock Ring | 17X1 | 1 | 07119934620 | $1.29 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Accelerator pedal/rod assy?
- This technical diagram illustrates the Accelerator pedal/rod assy within the Pedals group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Spacer tube (Part #35411200976).
- Which models use the hardware listed in this Accelerator pedal/rod assy?
- The hardware and components featured in the Accelerator pedal/rod assy are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Spacer tube (35411200976) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accelerator pedal/rod assy assembly?
- Each item in the Accelerator pedal/rod assy corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Spacer tube by locating its position on the schematic, which then links to the official BMW part number 35411200976 for the Pedals section.
