Pedals-supporting bracket for BMW 2500-3.3Li 2800 (1971)

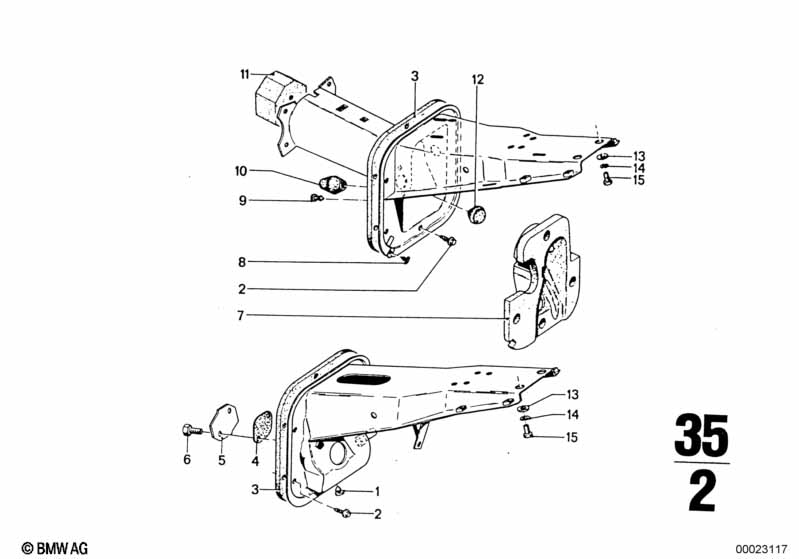

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Sheet metal screw | B6,5X16 | 6 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | 1 | 35111103543 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 02/1969 | 02/1977 | 35111117687 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering plate | 1 | 02/1969 | 02/1977 | 35111117557 | $0.56 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M8X16-Z3 | 2 | 02/1969 | 02/1977 | 07119915066 | $0.62 | Shop at ECS Tuning | ||
| 07 | Cap | 1 | 08/1968 | 02/1977 | 35111108673 | ENDED | Shop at ECS Tuning | |||
| 09 | Blind plug | D=9MM | 2 | 02/1969 | 02/1977 | 41125676193 | $1.17 | Shop at ECS Tuning | ||
| 10 | Grommet | 1 | 02/1969 | 02/1977 | 35111352729 | ENDED | Shop at ECS Tuning | |||
| 11 | Gasket | 1 | 08/1968 | 02/1977 | 35111101013 | $2.85 | ENDED | Shop at ECS Tuning | ||
| 12 | Plug | D=26MM | 1 | 02/1969 | 02/1977 | 61131354345 | ENDED | Shop at ECS Tuning | ||
| 13 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Pedals-supporting bracket?
- This technical diagram illustrates the Pedals-supporting bracket within the Pedals group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Sheet metal screw (Part #12138530118).
- Which models use the hardware listed in this Pedals-supporting bracket?
- The hardware and components featured in the Pedals-supporting bracket are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the Sheet metal screw (12138530118) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals-supporting bracket assembly?
- Each item in the Pedals-supporting bracket corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Sheet metal screw by locating its position on the schematic, which then links to the official BMW part number 12138530118 for the Pedals section.
