Pedals-supporting bracket/clutch pedal for BMW 2500-3.3Li 3.3Li (1975)

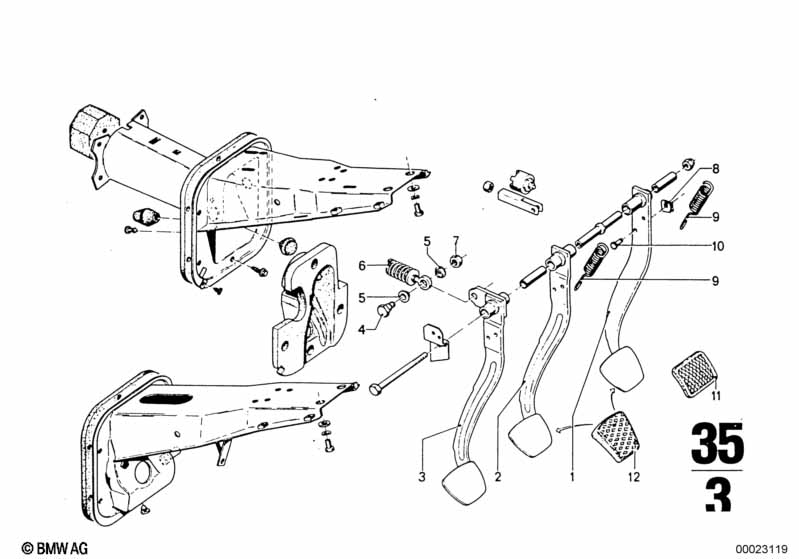

This Pedals-supporting bracket/clutch pedal technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake pedal | 1 | 09/1973 | 02/1977 | 35211112265 | Shop at ECS Tuning | ||||
| 03 | Clutch pedal | 1 | 09/1973 | 02/1977 | 35311112267 | ENDED | Shop at ECS Tuning | |||
| 04 | Fit bolt | 1 | 09/1973 | 02/1977 | 21521102721 | $3.62 | Shop at ECS Tuning | |||
| 05 | Bushing | 2 | 09/1973 | 02/1977 | 35314640116 | $1.20 | Shop at ECS Tuning | |||
| 06 | Spring | 1 | 09/1973 | 02/1977 | 35311111504 | $41.36 | ENDED | Shop at ECS Tuning | ||
| 07 | Self-locking hex nut | M10 | 1 | 09/1973 | 02/1977 | 07129964672 | $0.36 | Shop at ECS Tuning | ||
| 08 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tension spring | 2 | 35211103906 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 12 | Rubber pad | 2 | 09/1973 | 02/1977 | 35211108634 | $4.07 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
