Accelerator pedal for BMW 2500-3.3Li 2800 (1971)

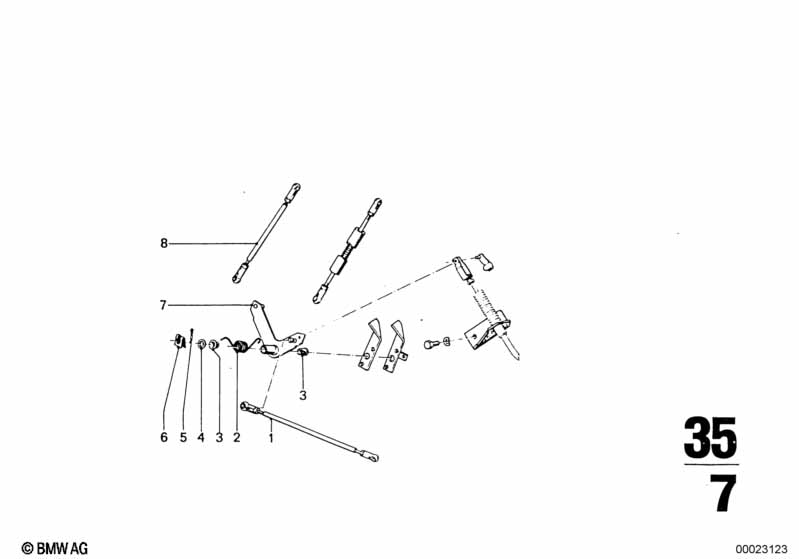

This Accelerator pedal technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rod | 1 | 08/1968 | 02/1977 | 35411113575 | $118.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Spring | 1 | 35411106271 | $8.04 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bushing | D=10MM | 2 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Washer | 10-200HV-ZNNIV | 1 | 07119907114 | Shop at ECS Tuning | |||||
| 06 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 07 | Intermediate lever | 1 | 08/1968 | 02/1977 | 35411102597 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
