Accelerator pedal for BMW 2500-3.3Li 2800 (1971)

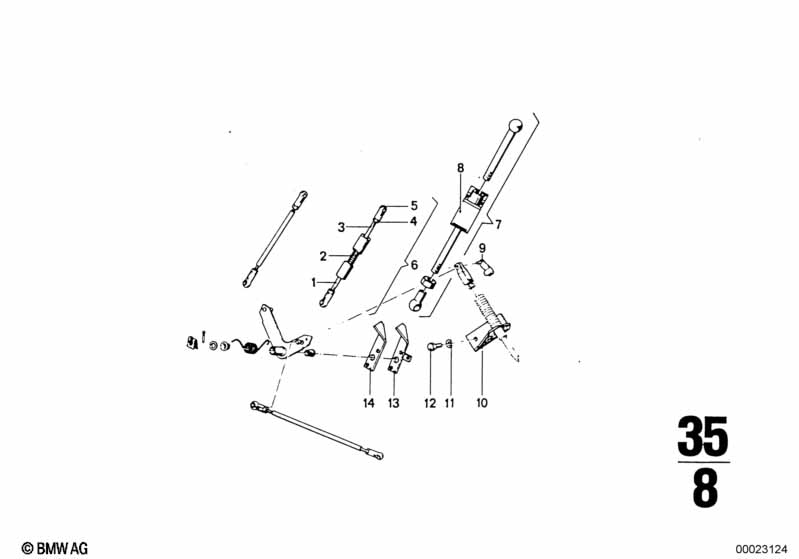

This Accelerator pedal technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Compression spring | 1 | 02/1969 | 02/1977 | 11310631136 | $2.24 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 05 | Ball joint | 4 | 13211260219 | $6.54 | ENDED | Shop at ECS Tuning | ||||
| 06 | Pull rod | 1 | 02/1969 | 02/1977 | 35411105103 | ENDED | Shop at ECS Tuning | |||
| 09 | Bolt | 1 | 02/1969 | 02/1977 | 24511201415 | $1.58 | ENDED | Shop at ECS Tuning | ||
| 10 | Support | 1 | 02/1969 | 02/1977 | 35411200683 | ENDED | Shop at ECS Tuning | |||
| 11 | Wave washer | 8,4X15-ZNS3 | 2 | 02/1969 | 02/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 12 | Hex bolt | M8X16-10.9-PHR | 2 | 02/1969 | 02/1977 | 07119913612 | $0.62 | Shop at ECS Tuning |
