Accelerator pedal - stopper for BMW 2500-3.3Li 2800 (1971)

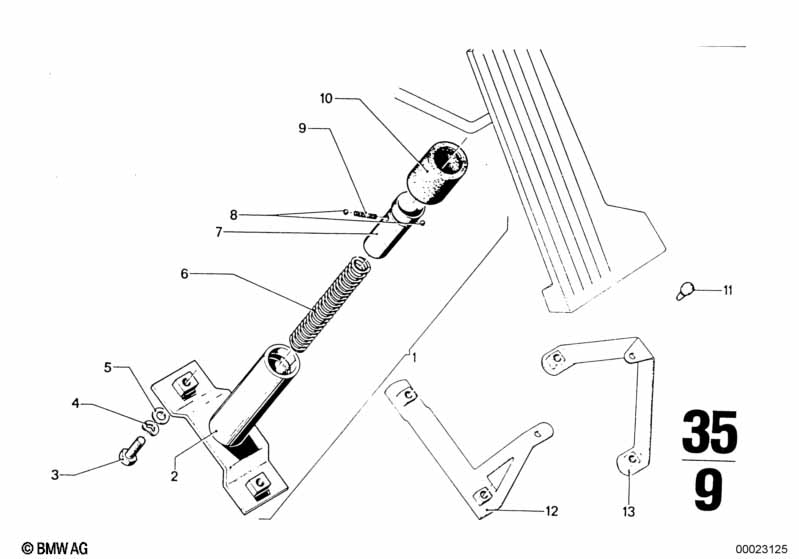

This Accelerator pedal - stopper technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stopper | 1 | 02/1969 | 02/1977 | 35411102200 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M6X16-SB | 2 | 07119913554 | $4.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 02/1969 | 02/1977 | 35411102592 | ENDED | Shop at ECS Tuning | |||
| 07 | Stopper | 1 | 02/1969 | 02/1977 | 35411103407 | ENDED | Shop at ECS Tuning | |||
| 08 | Ball | 5,5MM III | 2 | 02/1969 | 02/1977 | 07119986255 | $0.30 | Shop at ECS Tuning | ||
| 09 | Compression spring | 1 | 02/1969 | 02/1977 | 35411100763 | $0.58 | ENDED | Shop at ECS Tuning | ||
| 10 | Dust protection | 1 | 02/1969 | 02/1977 | 35411100766 | ENDED | Shop at ECS Tuning | |||
| 13 | Stopper | 1 | 02/1969 | 02/1977 | 35411115818 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Accelerator pedal - stopper?
- This technical diagram illustrates the Accelerator pedal - stopper within the Pedals group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Stopper (Part #35411102200).
- Which models use the hardware listed in this Accelerator pedal - stopper?
- The hardware and components featured in the Accelerator pedal - stopper are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the Stopper (35411102200) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accelerator pedal - stopper assembly?
- Each item in the Accelerator pedal - stopper corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Stopper by locating its position on the schematic, which then links to the official BMW part number 35411102200 for the Pedals section.
