Disk wheel for BMW 2500-3.3Li 3.0Si (1971)

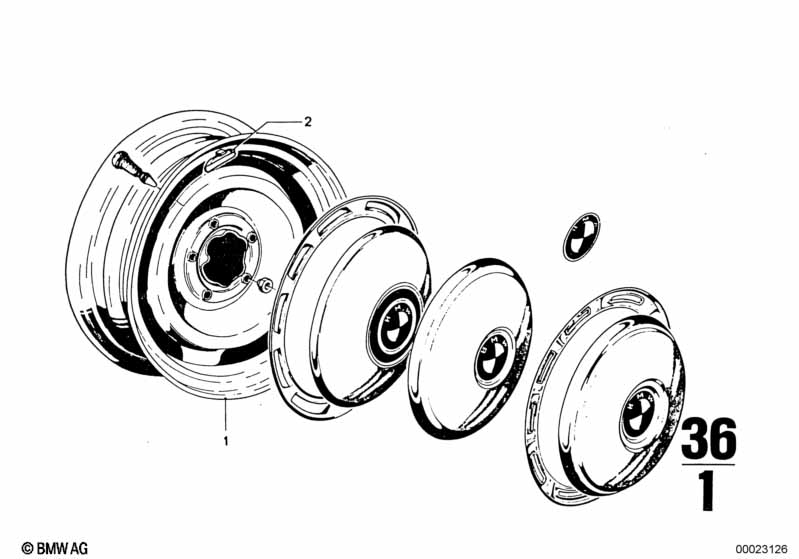

This Disk wheel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steel rim | 6JX14H2 | 5 | 36111116399 | ENDED | Shop at ECS Tuning | ||||
| 01 | Steel rim | 6JX14H2 | 5 | 08/1968 | 09/1973 | 36111103597 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
