Disk wheel for BMW 2500-3.3Li 2800 (1971)

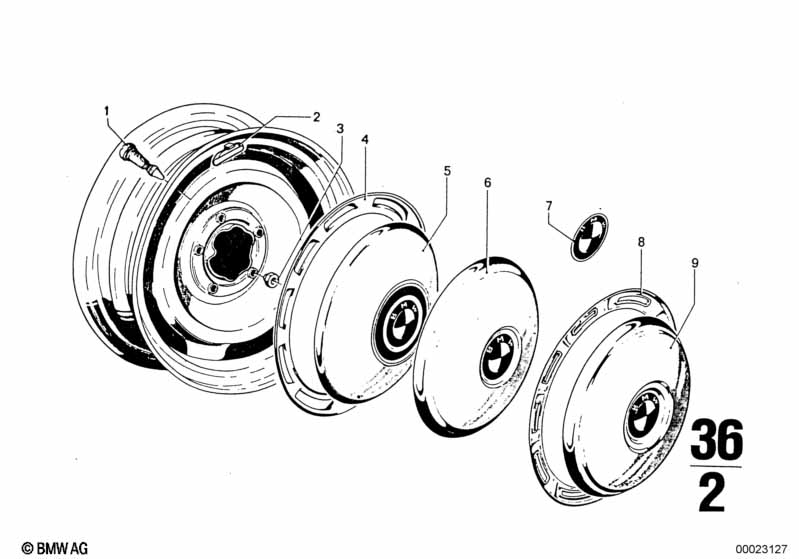

This Disk wheel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Conical nut | F12X60 | 20 | 08/1968 | 02/1977 | 07119926431 | $1.74 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| -- | Trim ring | X | 08/1968 | 02/1977 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Trim ring | 4 | 08/1968 | 02/1977 | 36131102630 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Trim ring | X | 08/1968 | 02/1977 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
| 05 | Hub cap | 4 | 08/1968 | 02/1977 | 36131102749 | $146.35 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Trim ring | X | 08/1968 | 02/1977 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
| 06 | Hub cap | 4 | 08/1968 | 02/1977 | 36131104625 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Trim ring | X | 08/1968 | 02/1977 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
| 07 | Plaque with adhesive film | D=82MM | 4 | 08/1968 | 02/1977 | 36131181104 | $5.79 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Trim ring | X | 08/1968 | 02/1977 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
| 08 | Trim ring | 4 | 08/1968 | 09/1973 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Trim ring | X | 08/1968 | 09/1973 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
| 09 | Hub cap | 4 | 08/1968 | 02/1977 | 36131106458 | $183.86 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Trim ring | X | 08/1968 | 02/1977 | 36131112790 | $48.71 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Disk wheel?
- This technical diagram illustrates the Disk wheel within the Wheels group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Rubber valve (Part #36121116326).
- Which models use the hardware listed in this Disk wheel?
- The hardware and components featured in the Disk wheel are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the Rubber valve (36121116326) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Disk wheel assembly?
- Each item in the Disk wheel corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Rubber valve by locating its position on the schematic, which then links to the official BMW part number 36121116326 for the Wheels section.
