Front body parts for BMW 1500-2000CS 1800 (1969)

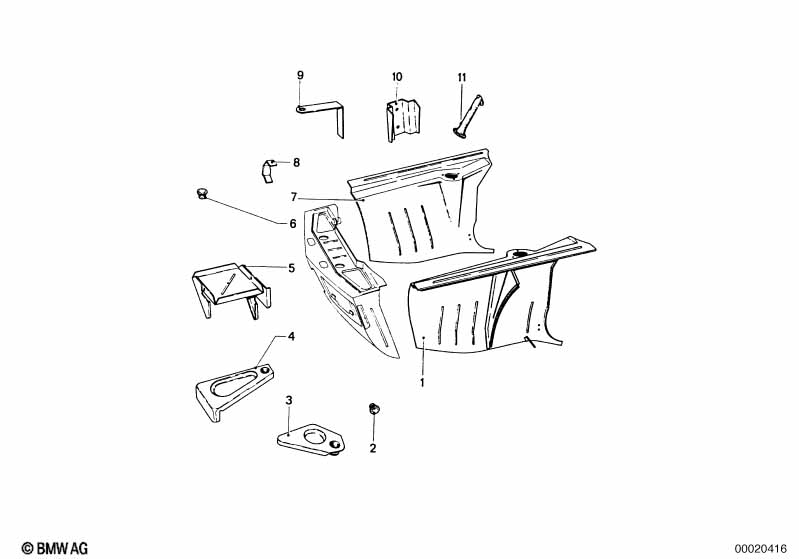

This Front body parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left wheelhouse | 1 | 41141802941 | ENDED | Shop at ECS Tuning | |||||
| 01 | Front left wheelhouse | 1 | 41141802941 | ENDED | Shop at ECS Tuning | |||||
| 02 | Blind plug | D=9MM | 2 | 41125676193 | $1.17 | Shop at ECS Tuning | ||||
| 02 | Blind plug | D=9MM | 2 | 41125676193 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Wheelhousing, front right | 1 | 41141802942 | ENDED | Shop at ECS Tuning | |||||
| 07 | Wheelhousing, front right | 1 | 41141802942 | ENDED | Shop at ECS Tuning | |||||
| 10 | Support fluid container windshield wash | 1 | 41141803549 | $3.77 | Shop at ECS Tuning | |||||
| 10 | Support fluid container windshield wash | 1 | 41141803549 | $3.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Front body parts?
- This technical diagram illustrates the Front body parts within the Bodywork group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Front left wheelhouse (Part #41141802941).
- Which models use the hardware listed in this Front body parts?
- The hardware and components featured in the Front body parts are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Front left wheelhouse (41141802941) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front body parts assembly?
- Each item in the Front body parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Front left wheelhouse by locating its position on the schematic, which then links to the official BMW part number 41141802941 for the Bodywork section.
