Rear wheelhouse/floor parts for BMW 1500-2000CS 1800 (1966)

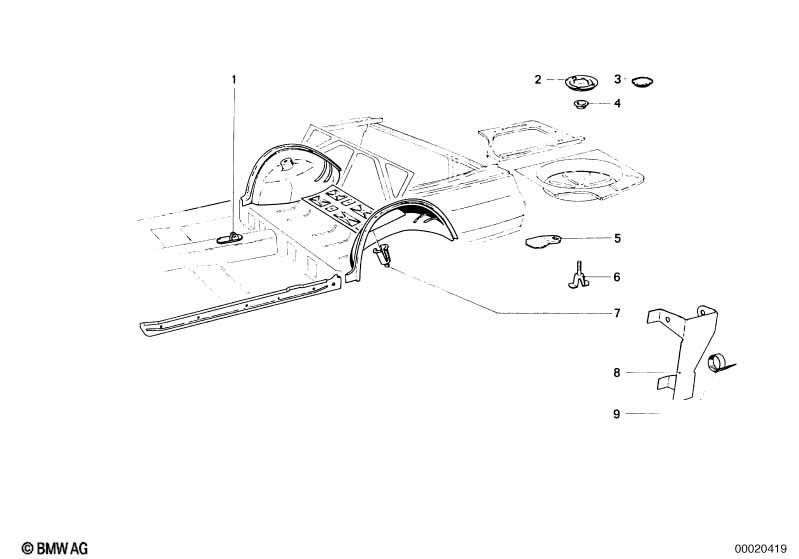

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 41121847796 | $16.96 | ENDED | Shop at ECS Tuning | ||||
| 05 | Towing bracket | 1 | 41125672116 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket for spare wheel | 1 | 41121909076 | $10.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Stopper | 2 | 41145603144 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Rear wheelhouse/floor parts?
- This technical diagram illustrates the Rear wheelhouse/floor parts within the Bodywork group for the 1500-2000CS 1800 produced during 1966. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #41121847796).
- Which models use the hardware listed in this Rear wheelhouse/floor parts?
- The hardware and components featured in the Rear wheelhouse/floor parts are specific to the 1500-2000CS 1800 produced during 1966. These technical specifications ensure that parts like the Supporting bracket (41121847796) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear wheelhouse/floor parts assembly?
- Each item in the Rear wheelhouse/floor parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 41121847796 for the Bodywork section.
