Engine hood/mounting parts for BMW 1500-2000CS 1800 (1969)

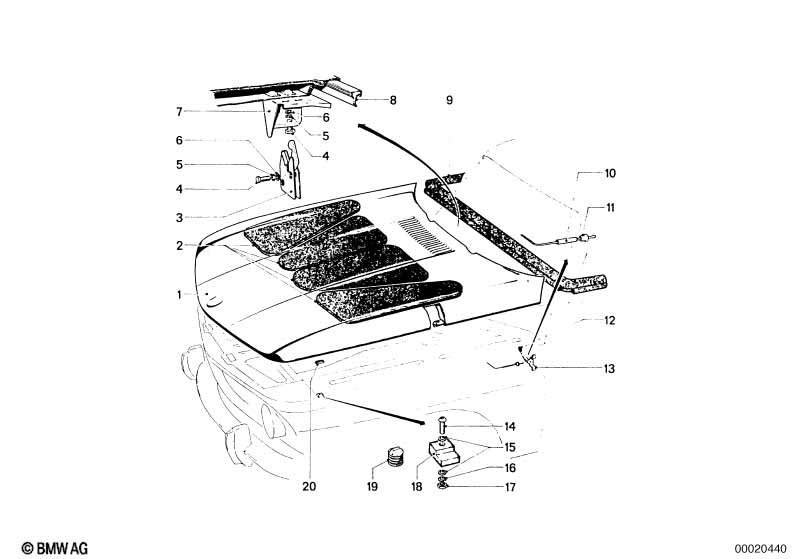

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41611802952 | ENDED | Shop at ECS Tuning | |||||
| 02 | Sound absorber | 1 | 07/1968 | 01/1972 | 51481803997 | $75.80 | ENDED | Shop at ECS Tuning | ||
| 03 | Lock | 2 | 51235076750 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 8 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Spring washer | B6 | 16 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Bow | 1 | 41615680135 | ENDED | Shop at ECS Tuning | |||||
| 07 | Bow | 1 | 41615680136 | ENDED | Shop at ECS Tuning | |||||
| 08 | sealing | 2 | 07/1968 | 01/1972 | 51231804183 | ENDED | Shop at ECS Tuning | |||
| 09 | sealing | 1 | 07/1968 | 01/1972 | 51231804233 | Shop at ECS Tuning | ||||
| 10 | Bowden cable | 1 | 51231800579 | $11.79 | Shop at ECS Tuning | |||||
| 11 | Bush | 1 | 51237630108 | $13.47 | Shop at ECS Tuning | |||||
| 12 | Button | 1 | 41335680162 | $14.81 | Shop at ECS Tuning | |||||
| 13 | Lever | 1 | 51231802434 | ENDED | Shop at ECS Tuning | |||||
| 19 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Engine hood/mounting parts?
- This technical diagram illustrates the Engine hood/mounting parts within the Bodywork group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Hood (Part #41611802952).
- Which models use the hardware listed in this Engine hood/mounting parts?
- The hardware and components featured in the Engine hood/mounting parts are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Hood (41611802952) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine hood/mounting parts assembly?
- Each item in the Engine hood/mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Hood by locating its position on the schematic, which then links to the official BMW part number 41611802952 for the Bodywork section.
