Forward structure for BMW 2500-3.3Li 2500 (1971)

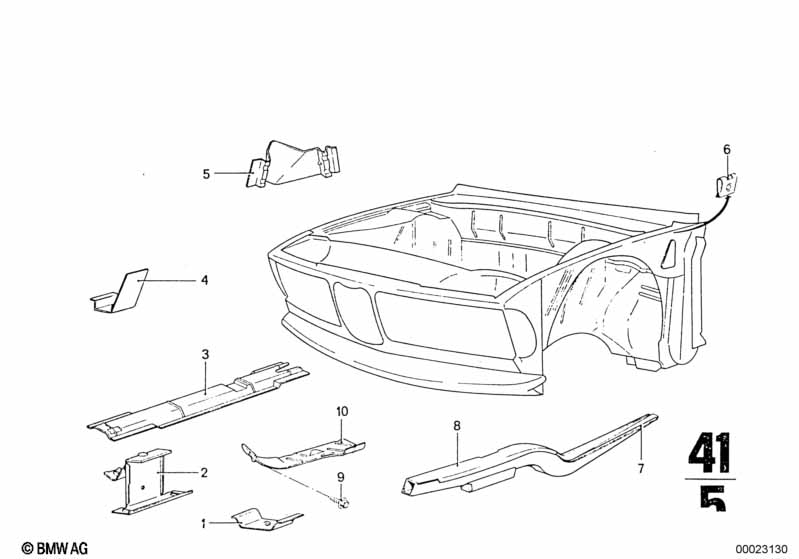

This Forward structure technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder, heat protection sheet | 3 | 41111816760 | $12.95 | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 41111823091 | ENDED | Shop at ECS Tuning | |||||
| 06 | Body nut | ST6,3-1-ZNS3 | 18 | 07129904231 | Shop at ECS Tuning | |||||
| 07 | Engine support, left | 1 | 08/1968 | 02/1977 | 41111847707 | $359.35 | ENDED | Shop at ECS Tuning | ||
| 07 | Engine support right | 1 | 08/1968 | 02/1977 | 41111847708 | $485.92 | ENDED | Shop at ECS Tuning | ||
| 08 | Covering plate | 2 | 08/1968 | 02/1977 | 41111847709 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex head screw | ST6,3X13-C-Z1 | 4 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Heat resistant plate | 1 | 08/1968 | 02/1977 | 51481815509 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Forward structure?
- This technical diagram illustrates the Forward structure within the Bodywork group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Holder, heat protection sheet (Part #41111816760).
- Which models use the hardware listed in this Forward structure?
- The hardware and components featured in the Forward structure are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Holder, heat protection sheet (41111816760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Forward structure assembly?
- Each item in the Forward structure corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Holder, heat protection sheet by locating its position on the schematic, which then links to the official BMW part number 41111816760 for the Bodywork section.
