Front door-hinge/door brake for BMW 2500-3.3Li 3.3L (1974)

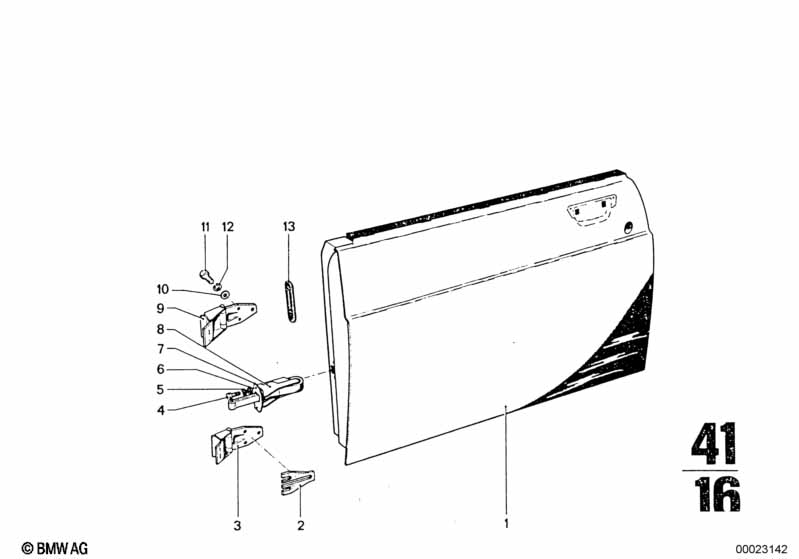

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front right | 1 | 08/1968 | 02/1977 | 41511801534 | ENDED | Shop at ECS Tuning | |||
| 01 | Door front left | 1 | 08/1968 | 02/1977 | 41511854883 | ENDED | Shop at ECS Tuning | |||
| 02 | Hinge spacer | 2,00MM | 4 | 41511801252 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinge spacer | 1,00MM | 4 | 41511801253 | $10.32 | Shop at ECS Tuning | ||||
| 02 | Hinge spacer | 0,75MM | 4 | 41511801254 | $7.49 | ENDED | Shop at ECS Tuning | |||
| 03 | Holder | 2 | 41511802495 | $36.09 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X18 | 4 | 07119913019 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 07 | Stopper | 2 | 41511800150 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 08 | Door brake | 2 | 41510392328 | $58.91 | Shop at ECS Tuning | |||||
| 09 | Holder | 2 | 41511802496 | $34.67 | Shop at ECS Tuning | |||||
| 10 | Washer | A8,4X25 | 12 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20-ZNNIV SI | 12 | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Wave washer | 8,4X15-ZNS3 | 12 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Gasket | 4 | 51211807212 | $2.73 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Front door-hinge/door brake?
- This technical diagram illustrates the Front door-hinge/door brake within the Bodywork group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Door front right (Part #41511801534).
- Which models use the hardware listed in this Front door-hinge/door brake?
- The hardware and components featured in the Front door-hinge/door brake are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Door front right (41511801534) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door-hinge/door brake assembly?
- Each item in the Front door-hinge/door brake corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Door front right by locating its position on the schematic, which then links to the official BMW part number 41511801534 for the Bodywork section.
