Rear door - hinge/door brake for BMW 2500-3.3Li 3.3L (1974)

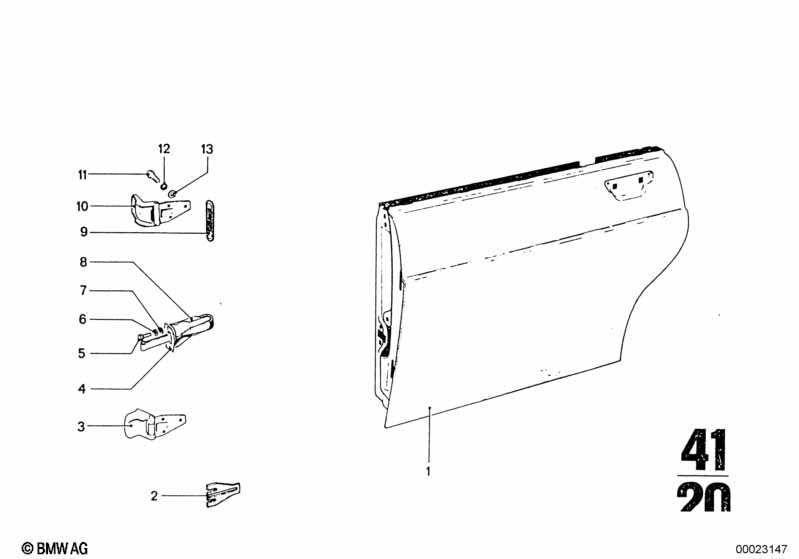

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 01/1974 | 02/1977 | 41521827041 | ENDED | Shop at ECS Tuning | |||
| 01 | Door rear right | 1 | 01/1974 | 02/1977 | 41521827042 | ENDED | Shop at ECS Tuning | |||
| 02 | Hinge spacer | 2,00MM | 2 | 41511801252 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinge spacer | 1,00MM | 2 | 41511801253 | $10.32 | Shop at ECS Tuning | ||||
| 02 | Hinge spacer | 0,75MM | 2 | 41511801254 | $7.49 | ENDED | Shop at ECS Tuning | |||
| 03 | Hinge | 1 | 41521802499 | $44.92 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hinge | 1 | 41521802500 | ENDED | Shop at ECS Tuning | |||||
| 04 | Stop buffer | 2 | 41521805535 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Door brake | 2 | 41521800554 | $50.26 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket | 4 | 51211807212 | $2.73 | Shop at ECS Tuning | |||||
| 10 | Hinge | 1 | 41521802497 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hinge | 1 | 41521802498 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X20-ZNNIV SI | 12 | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Spring washer | B8 | 12 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Washer | A8,4X25 | 12 | 07147201571 | $0.20 | Shop at ECS Tuning |
