Single components for trunk lid for BMW 2500-3.3Li 2500 (1971)

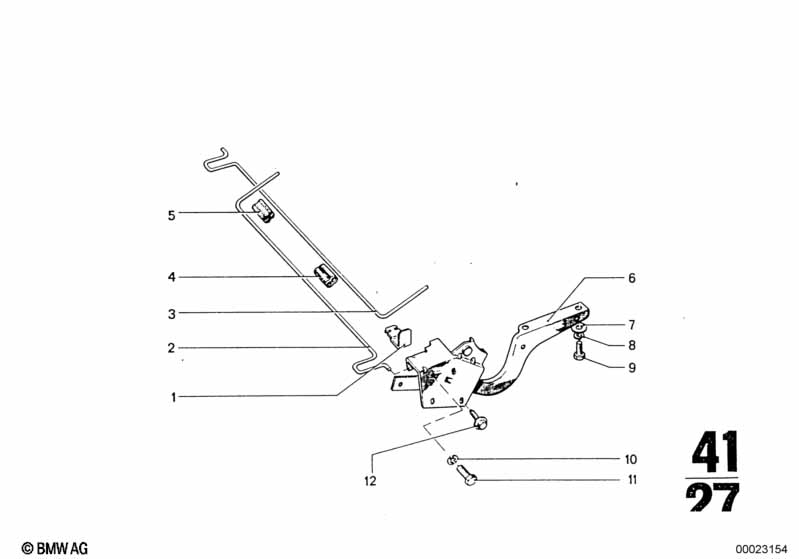

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Notch | 2 | 41621801569 | ENDED | Shop at ECS Tuning | |||||
| 02 | Torsion spring left | 1 | 08/1968 | 02/1977 | 41621800533 | $17.19 | Shop at ECS Tuning | |||
| 03 | Torsion spring right | 1 | 08/1968 | 02/1977 | 41621800534 | $17.19 | Shop at ECS Tuning | |||
| 04 | Suspension | 1 | 08/1968 | 02/1977 | 51241815364 | $0.90 | Shop at ECS Tuning | |||
| 05 | Suspension | 2 | 51241804080 | $1.92 | Shop at ECS Tuning | |||||
| 06 | Hinge | 1 | 41621813529 | $29.59 | Shop at ECS Tuning | |||||
| 06 | Hinge | 1 | 41621813530 | $29.59 | Shop at ECS Tuning | |||||
| 07 | Washer | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Spring washer | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
| 10 | Wave washer | B8 | 6 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Sheet metal screw | B6,5X16 | 6 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning |
