Front door control/door lock for BMW V8 3200CS (1962)

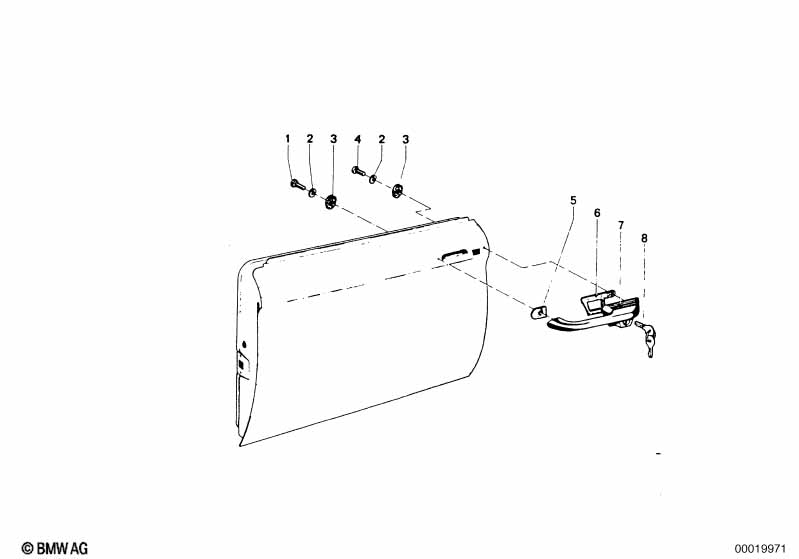

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the V8 3200CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Base | KLEIN | 4 | 51210305023 | ENDED | Shop at ECS Tuning | ||||
| 06 | Base | GROSS | 4 | 51210305022 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW V8 3200CS Front door control/door lock?
- This technical diagram illustrates the Front door control/door lock within the Bodywork group for the V8 3200CS produced during 1962. It provides a detailed exploded view of the components, identifying key parts such as the Base (Part #51210305023).
- Which models use the hardware listed in this Front door control/door lock?
- The hardware and components featured in the Front door control/door lock are specific to the V8 3200CS produced during 1962. These technical specifications ensure that parts like the Base (51210305023) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door control/door lock assembly?
- Each item in the Front door control/door lock corresponds to the numbered list below the illustration. For the V8 3200CS, you can identify the Base by locating its position on the schematic, which then links to the official BMW part number 51210305023 for the Bodywork section.
