Exterior trim / grill for BMW 1500-2000CS 1800 (1967)

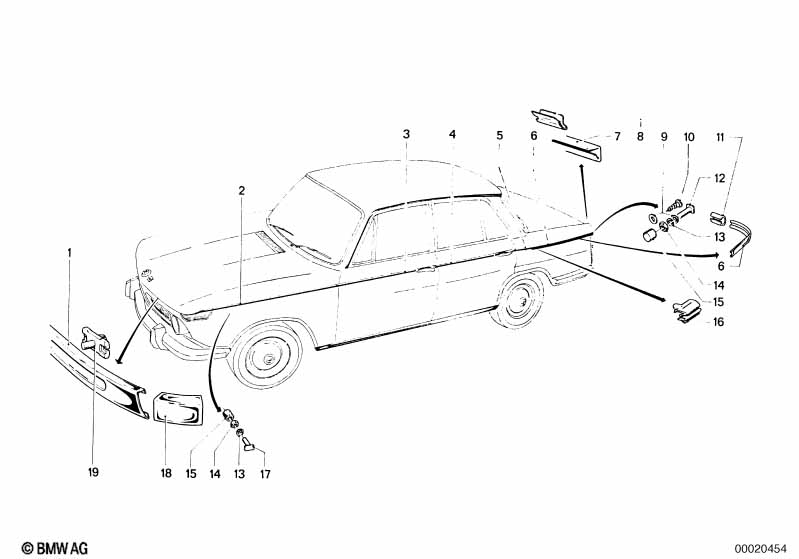

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1967.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative strip | 1 | 01/1966 | 01/1972 | 51131804096 | $51.48 | ENDED | Shop at ECS Tuning | ||
| 02 | Moulding front left | 1 | 09/1963 | 07/1968 | 51135680105 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding front right | 1 | 09/1963 | 07/1968 | 51135680106 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding front left | 1 | 01/1966 | 01/1972 | 51135780116 | $91.51 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| 02 | Moulding front right | 1 | 01/1966 | 01/1972 | 51135780117 | $91.51 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Decorative strip | X | 01/1966 | 01/1972 | 51131804096 | $51.48 | ENDED | Shop at ECS Tuning | ||
| 03 | Decorative strip for door, front, left | 1 | 09/1963 | 01/1972 | 51136654184 | $53.57 | ENDED | Shop at ECS Tuning | ||
| 03 | Decorative strip for door, front, right | 1 | 09/1963 | 01/1972 | 51136654186 | ENDED | Shop at ECS Tuning | |||
| 04 | Decorative strip for door, rear, left | 1 | 09/1963 | 01/1972 | 51136660184 | ENDED | Shop at ECS Tuning | |||
| 04 | Decorative strip for door, rear, right | 1 | 09/1963 | 01/1972 | 51136660186 | ENDED | Shop at ECS Tuning | |||
| 05 | Moulding upper left | 1 | 09/1963 | 01/1972 | 51135676106 | Shop at ECS Tuning | ||||
| 05 | Moulding upper right | 1 | 09/1963 | 01/1972 | 51135676107 | ENDED | Shop at ECS Tuning | |||
| 06 | Moulding lower left | 1 | 51135676182 | ENDED | Shop at ECS Tuning | |||||
| 06 | Moulding lower right | 1 | 51135676183 | $92.07 | Shop at ECS Tuning | |||||
| 07 | Decorative strip | 1 | 51135776177 | $78.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clamp | 17 | 51135676194 | $1.93 | Shop at ECS Tuning | |||||
| 09 | Washer | A3,2 | 36 | 09/1963 | 01/1972 | 07119931015 | $0.09 | Shop at ECS Tuning | ||
| 10 | Fillister head self-tapping screw | ST2,9X9,5 | 2 | 07119907707 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Cup | 2 | 51135676187 | $2.76 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fastener | 4 | 51131802205 | $2.52 | Shop at ECS Tuning | |||||
| 13 | Spring washer | B3 | 36 | 09/1963 | 01/1972 | 07119933017 | $0.13 | Shop at ECS Tuning | ||

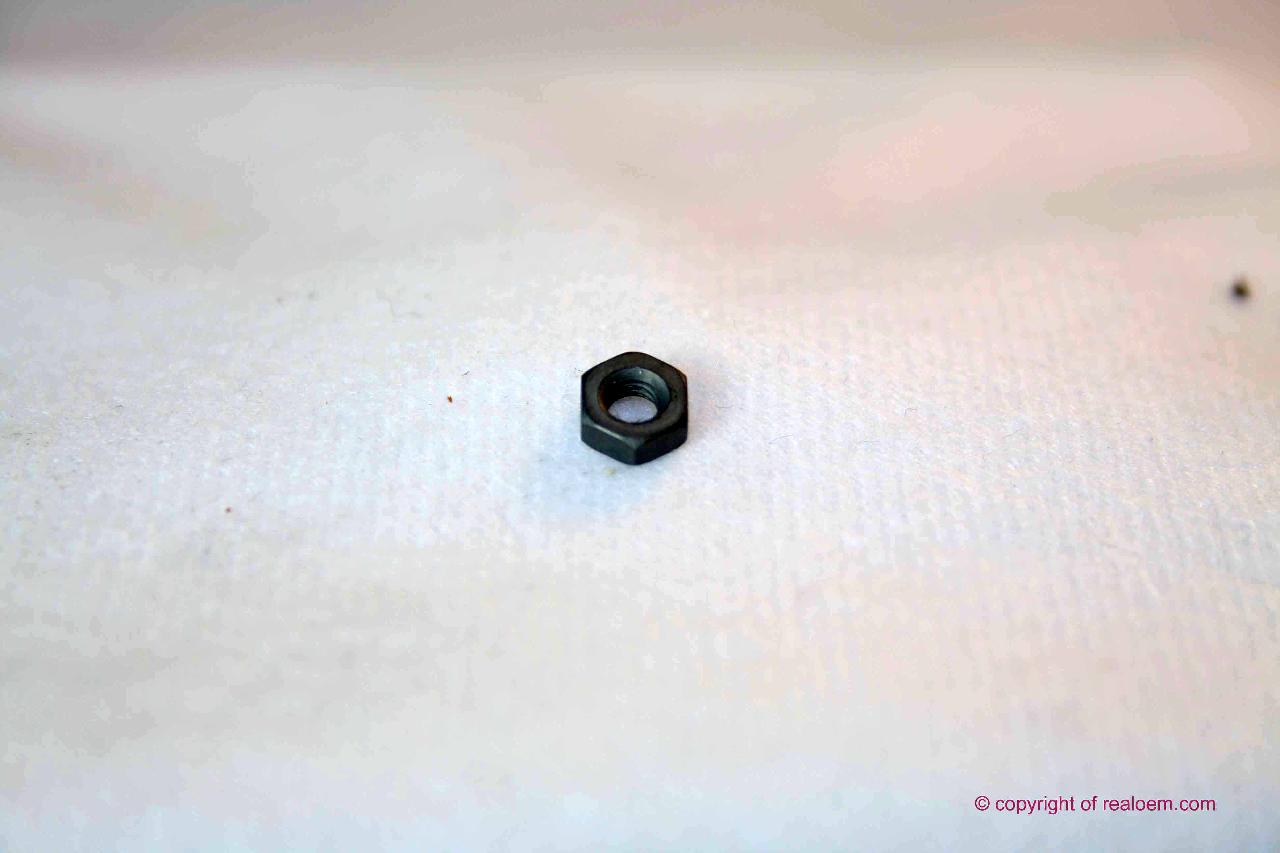

| 14 | Hex nut | M3 | 36 | 09/1963 | 01/1972 | 07119922016 | $0.09 | Shop at ECS Tuning | ||
| 16 | Clamp | X | 51136654190 | $1.07 | Shop at ECS Tuning | |||||
| 16 | Clamp | 10 | 09/1963 | 01/1972 | 51131813240 | ENDED | Shop at ECS Tuning | |||
| 16 | Clamp | 10 | 09/1963 | 01/1972 | 41355001719 | ENDED | Shop at ECS Tuning | |||
| 17 | Clamp | 28 | 09/1963 | 01/1972 | 51135680107 | $2.64 | Shop at ECS Tuning | |||
| 17 | Clamp | 2 | 09/1963 | 01/1972 | 51135680108 | $2.64 | Shop at ECS Tuning | |||
| 17 | Clamp | 2 | 01/1966 | 01/1972 | 51135780121 | $2.34 | Shop at ECS Tuning | |||
| 18 | Cup | 2 | 01/1966 | 01/1972 | 51135780119 | $1.67 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Decorative strip | 2 | 01/1966 | 01/1972 | 51131804096 | $51.48 | ENDED | Shop at ECS Tuning | ||

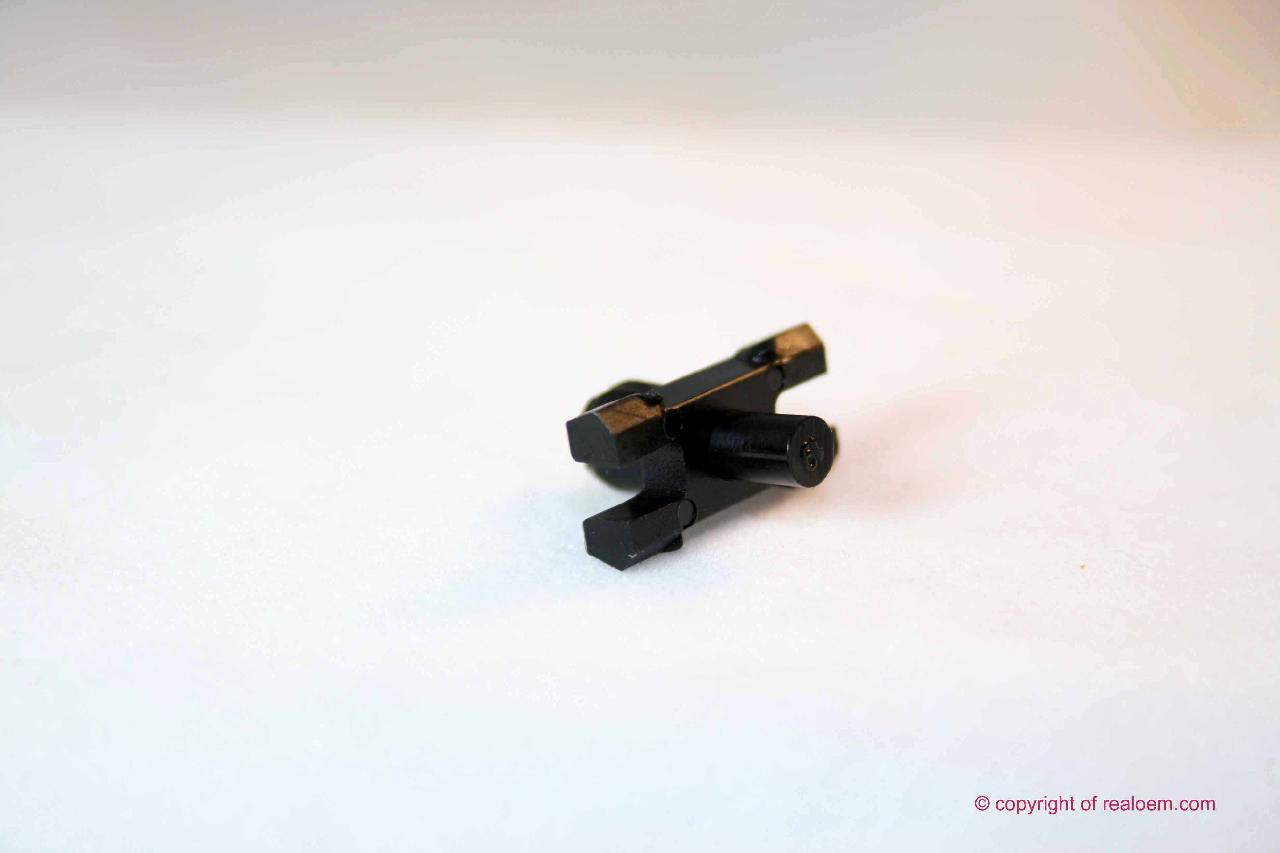

| 19 | Clip | 8 | 01/1966 | 01/1972 | 51131804205 | $1.71 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Decorative strip | 8 | 01/1966 | 01/1972 | 51131804096 | $51.48 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
