Exterior trim / grill for BMW 1500-2000CS 1600 (1964)

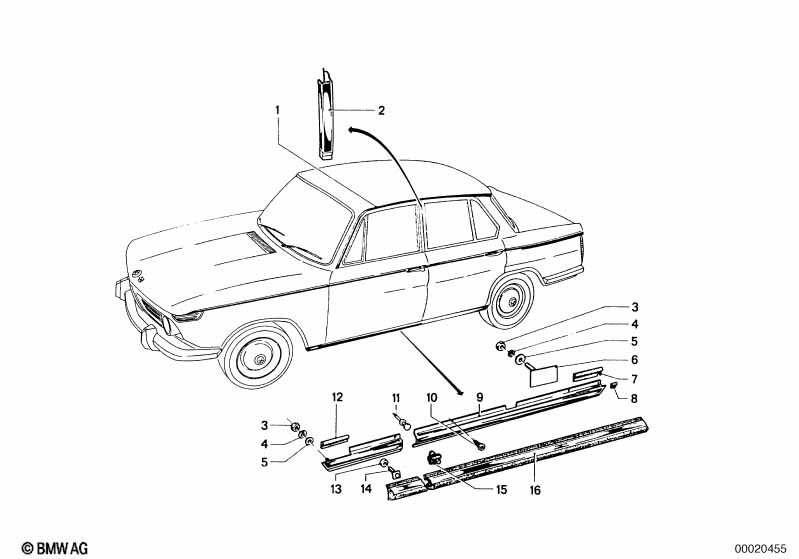

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1600. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding left | 1 | 51135650190 | $90.26 | ENDED | Shop at ECS Tuning | ||||
| 01 | Moulding right | 1 | 51135650191 | $90.26 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 04 | Spring washer | B4 | 4 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 06 | Screw | 2 | 02/1962 | 12/1968 | 51416754246 | ENDED | Shop at ECS Tuning | |||
| 07 | sealing | 2 | 02/1962 | 12/1968 | 51136640136 | ENDED | Shop at ECS Tuning | |||
| 08 | sealing | 2 | 02/1962 | 12/1968 | 51136640130 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering left | 1 | 02/1962 | 12/1968 | 51136640142 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering right | 1 | 02/1962 | 12/1968 | 51136640143 | $177.44 | ENDED | Shop at ECS Tuning | ||
| 11 | Rivet | 3,2-5A | 12 | 02/1962 | 12/1968 | 07129948740 | ENDED | Shop at ECS Tuning | ||
| 12 | sealing | 2 | 02/1962 | 12/1968 | 51136640138 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
