Emblems / letterings for BMW 1500-2000CS 1500 (1964)

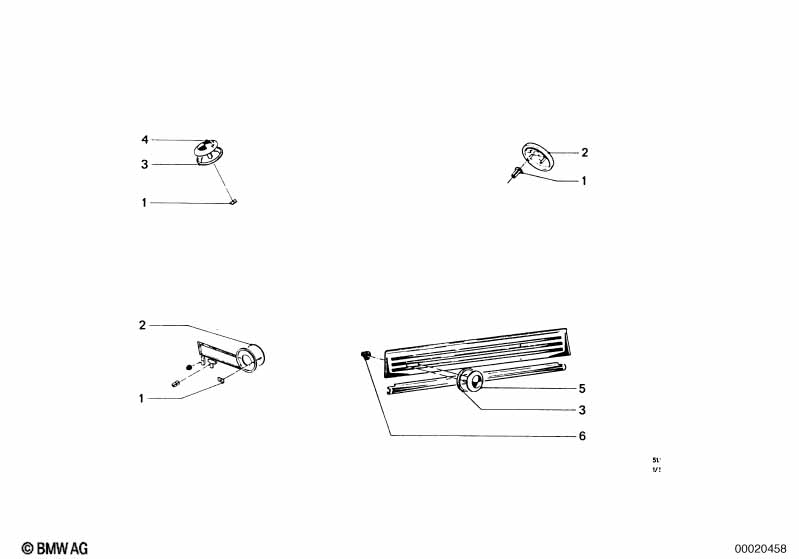

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

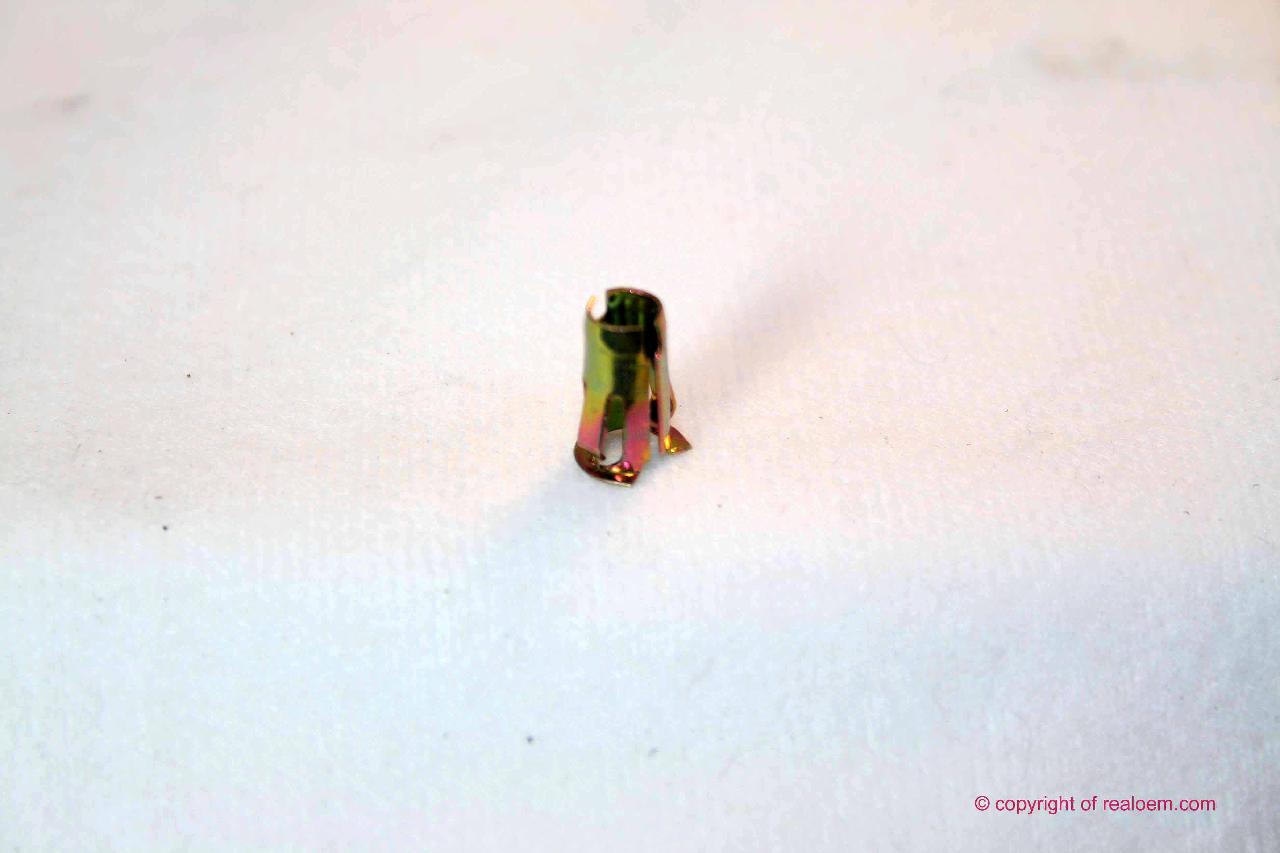

| 01 | Grommet | 2 | 51145480184 | $3.07 | ENDED | Shop at ECS Tuning | ||||
| 02 | BMW emblem | HINTEN / GOLD | 1 | 08/1964 | 51145081746 | ENDED | Shop at ECS Tuning | |||
| 03 | Base | 1 | 51145076736 | ENDED | Shop at ECS Tuning | |||||
| 05 | BMW emblem | HINTEN / GOLD | 1 | 08/1964 | 51145081746 | ENDED | Shop at ECS Tuning | |||

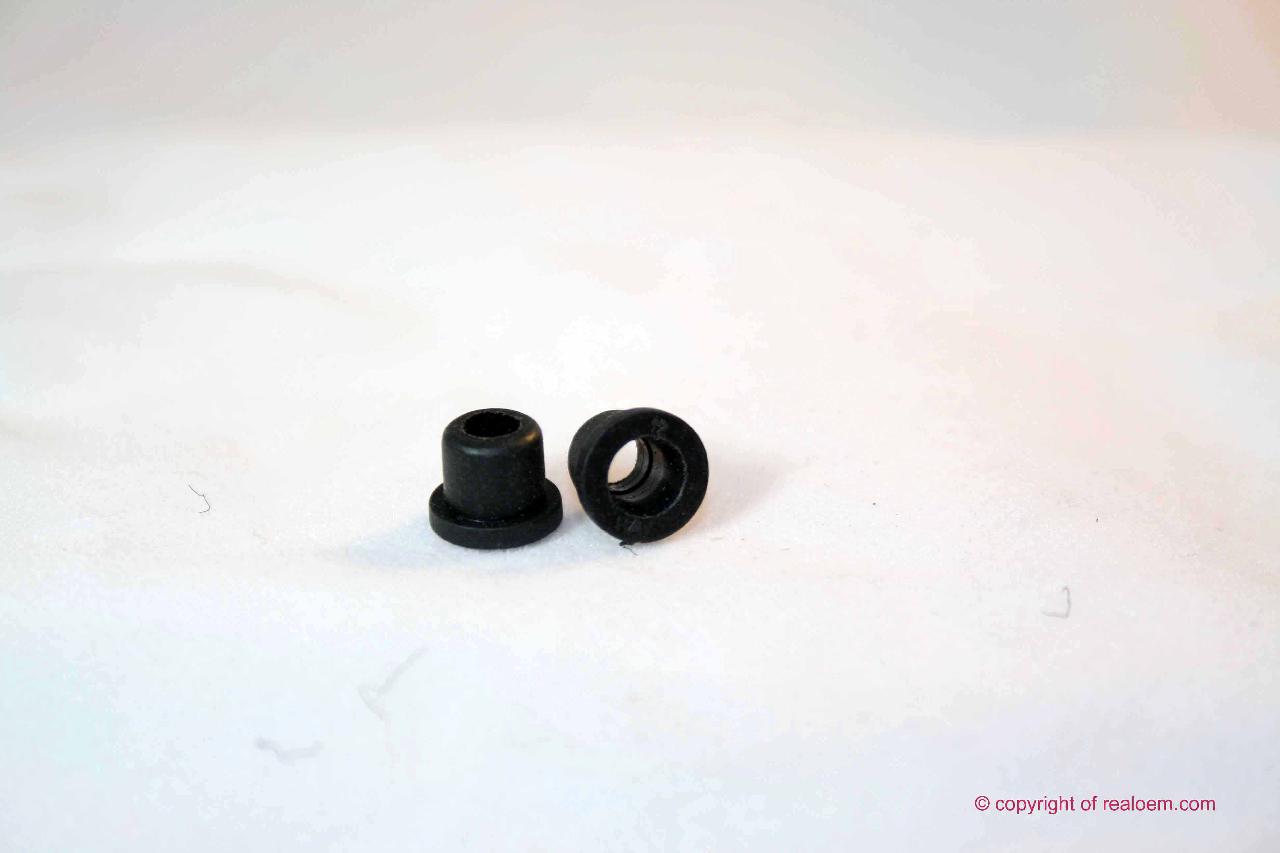

| 06 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1500 Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 1500-2000CS 1500 produced during 1964. It provides a detailed exploded view of the components, identifying key parts such as the Grommet (Part #51145480184).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 1500-2000CS 1500 produced during 1964. These technical specifications ensure that parts like the Grommet (51145480184) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 1500-2000CS 1500, you can identify the Grommet by locating its position on the schematic, which then links to the official BMW part number 51145480184 for the Vehicle trim section.
